  •   Utepo komutatorius 26 prievadų UTP3324S-PSB410-M0

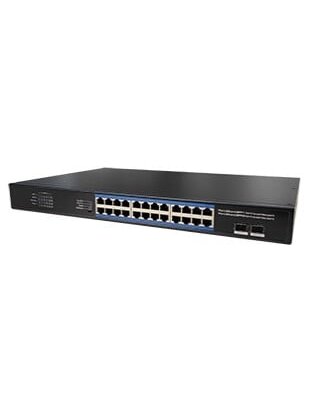

    Utepo komutatorius 26 prievadų UTP3324S-PSB410-M0

    Kodas: SWITCHUTP3324SPSB410M0
    Barkodas: 6971752681806
    Pasiteirauti apie prekę
    260.68 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Komutatorius 26 prievadų
    • 24 PoE 1 Gb
    • 2-XSFP Gb
    • Combo
    • 17-22 ports >250m/10Mbps (CCTV)
    • Cap 156Mbps
  • Prekės aprašymas
    • Pagrindinis
    • Downlink prievadai24*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)
    • Uplink prievadai2*GE Combo Ports(SFP Port is prior to RJ-45 Port)
    • Led indikatoriai1*Power, power supply indicator, 1*PoE-Max, PoE power indicator, 24*Link/Act, port state indicators, 2*SFP port state indicators
    • Dydis440mm*284mm*44mm
    • Įeinanti įtampa100~240V AC, 50~60Hz
    • Energijos sunaudojimas≤410W (Full load including PoE)
    • MedžiagaMetal shell
    • MontavimasRack/Desktop/Wall mounted
    • StandartaiIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
    • Persiuntimo režimaiStore and Forward
    • MAC adresų lentelė8k, support auto learning
    • Perjungimo talpa156Gbps / non-blocking
    • PoE standartasIEEE 802.3af/at
    • PoE maitinimo tipasEnd-span
    • PoE išdėstymas1/2/4/5(+), 3/6/7/8(-)
    • PoE biudžetas30W max for each port, 370W max for whole switch
    • Port Lightning Protection6kV
    • Darbo sąlygos temperatūra-10℃~50℃, 10%~90% (Non-condensation)
    • Saugykla-40℃~70℃, 5%~90% (Non-condensation)
    • Switch Mode Default modeSwitches in this mode can function as a core switch and all the ports can communicate with each other. QoS mode: UTP3318S-PSB250-M0 port 15, 16, SFP1 and SFP2 serve as uplink ports, ports 1-8 serve as high priority port. All ports can communicate with each other separately. UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 port 23, 24, SFP1 and SFP2 serve as uplink ports, ports 1-8 serve as high priority port. All ports can communicate with each other separately. CCTV mode: UTP3318S-PSB250-M0 transmission distance of ports 9-14 is extended up to 250m, but the data rate is limited to 10Mbps. UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 transmission distance of ports 17-22 is extended up to 250m, but the data rate is limited to 10Mbps. VLAN mode: UTP3318S-PSB250-M0 ports 1-14 are isolated from each other but able to communicate with ports 15, 16, SFP1 and SFP2. UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 ports 1-22 are isolated from each other but able to communicate with ports 23, 24, SFP1 and SFP2.
