  •   Prieigos taškas Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Montuojamas lauke)

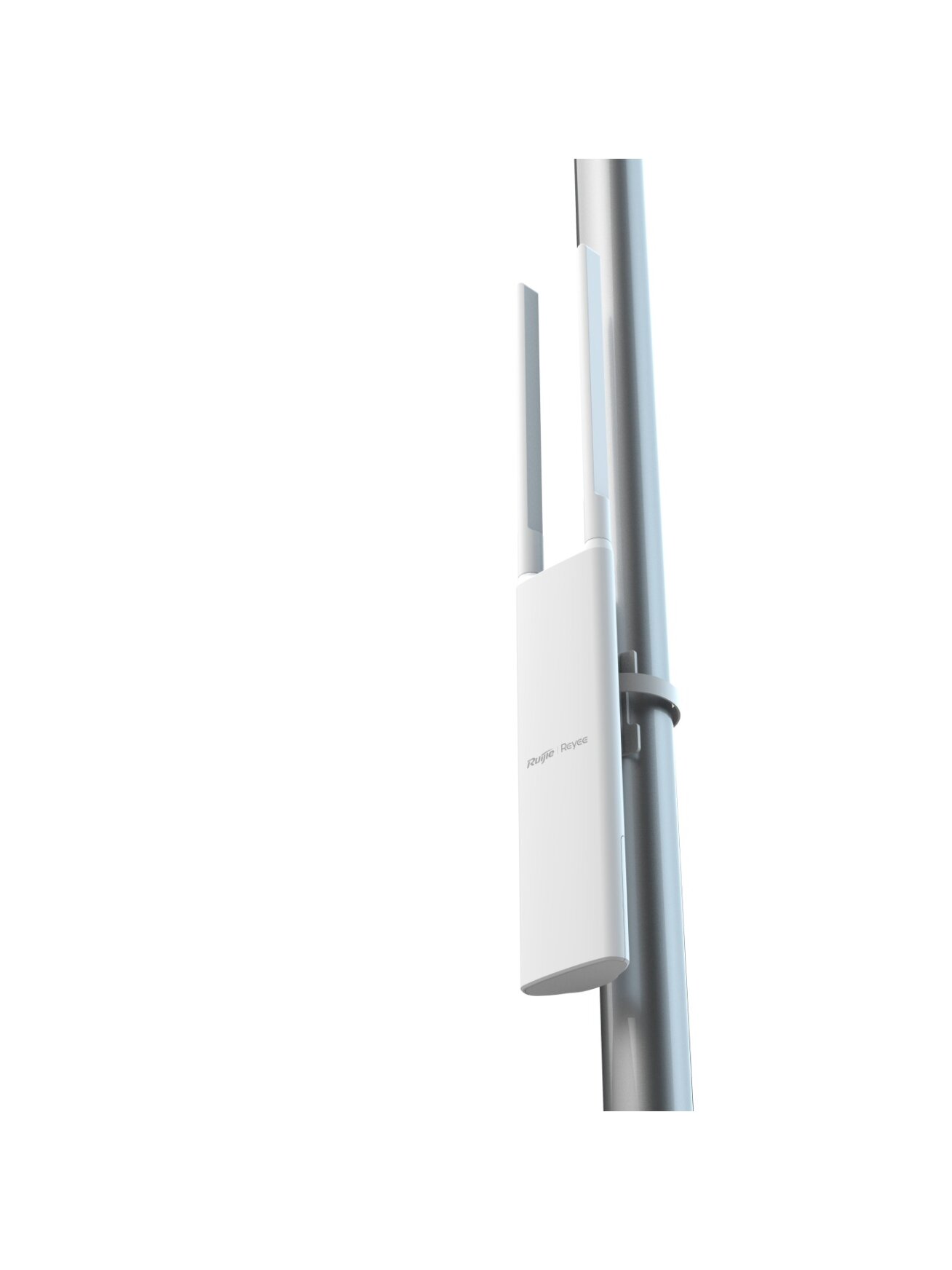

    Prieigos taškas Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Montuojamas lauke)

    Kodas: RUIJIERGRAP52OD
    Barkodas: 6971693277519
    Pasiteirauti apie prekę
    85.06 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Tipas: Prieigos taškas
    • Modelis: Ruijie Reyee RG-RAP52-OD
    • Wi-Fi standartas: Wi-Fi 5 (802.11ac Wave2)
    • Prievadai: 1 x 1Gbps RJ45
    • Wi-Fi greitis: iki 400 Mbps @ 2,4 GHz; 867 Mbps @ 5 GHz
    • Rekomenduojamas prijungtų įrenginių skaičius: 80 (max 110)
    • MIMO technologija: 2x2 @ 2,4 GHz; 2x2 @ 5 GHz
    • Energijos sunaudojimas: ≤ 14 W
    • Maitinimas: 802.3af arba 24V passive PoE
    • Darbinė temperatūra: nuo -30°C iki 70 °C
    • IP Standartas: IP65
    • Garantija: 3 metai
  • Prekės aprašymas
    • Pagrindinis
    • Wi-Fi protokolai5 GHz: Wi-Fi 4 (IEEE 802.11a/n), Wi-Fi 5 (IEEE 802.11ac Wave2); 2.4 GHz: Wi-Fi 4 (IEEE 802.11b/g/n)
    • Dažnių juostos5 GHz: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz; 2.4 GHz: 2.400 GHz to 2.4835 GHz
    • Erdviniai srautai5 GHz: 2 spatial streams, 2x2 MIMO; 2.4 GHz: 2 spatial streams, 2x2 MIMO
    • AntenaOmni-directional
    • Antenos stiprinimas5 GHz: 4.0 dBi; 2.4 GHz: 3.0 dBi
    • Kanalo plotis5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
    • Duomenų perdavimo greitisMax Throughput: 1266 Mbps; 5 GHz: 866 Mbps; 2.4 GHz: 400 Mbps
    • Maksimali perdavimo galia5 GHz: ≤125 mW (21 dBm); 2.4 GHz: ≤160 mW (22 dBm)
    • Wi-Fi aprėptis5 GHz Max. Range: 400m; 2.4 GHz Max. Range: 300m
    • ModuliacijaOFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps; DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, CCK@5.5/11 Mbps; MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
    • Imtuvo jautrumas 11b: -91dBm (1 Mbps), -88dBm (5.5 Mbps), -85dBm (11 Mbps); 11a/g: -89dBm (6 Mbps), -80dBm (24 Mbps), -76dBm (36 Mbps), -71dBm (54 Mbps); 11n: -83dBm (MCS0), -65dBm (MCS7), -83dBm (MCS8), -65dBm (MCS15); 11ac (20 MHz): -83dBm (MCS0), -57dBm (MCS9); 11ac (40 MHz): -79dBm (MCS0), -57dBm (MCS9); 11ac (80 MHz): -76dBm (MCS0), -51dBm (MCS9)
    • Dydis (P x G x A)220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.), Antenna size: 185 mm (7.28 in.)
    • Svoris≤ 0.4 kg (0.88 lbs.) (excluding mounting kits)
    • Service PortsNumber of 10/100/1000BASE-T Ports: 1 (supports 802.3af PoE); Number of 10/100/1000/2500BASE-T Ports: 0; Number of 1 Gbps Optical Ports (SFP): 0; Number of 10 Gbps Optical Ports (SFP+): 0
    • MaitinimasDC (Local Power): No; DC Port Dimensions: No; 802.3af: Yes; 802.3at: Yes; 802.3bt: N/A; 48 V passive PoE: N/A; PoE Out: No; Max. PoE Wattage by PSE: No
    • Energijos sunaudojimas< 13.5 W
    • Maitinimo adapterisNo
    • Klavišai1 × Factory reset
    • LED1 × System LED indicator (blue)
    • Darbo sąlygos (temperatūra)–30°C to +65°C (–22°F to +149°F)
    • Sandėliavimo sąlygos temperatūra–40°C to +75°C (–40°F to +167°F)
    • Darbo sąlygos (drėgmė)10% to 95% (non-condensing)
    • Sandėliavimo sąlygos drėgmė10% to 95% (non-condensing)
    • MontavimasCeiling-mount: No; Wall-mount: Yes; Pole-mount: Yes
    • Compliance StandardsHealth: EN IEC 62311:2020; Spectrum: EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
    • Atsparumas oro sąlygoms IP Rating: IP65; Lightning Protection/Surge: ±4 kV
    • Darbinis režimasRouter Mode: Yes; AP Mode: Yes
    • WLANRecommended Number of Clients: 16 (2.4G) + 64 (5G) = 80; Max. Number of SSIDs: 8; Radio-based STA Limit: Yes; Layer 2 Client Isolation: Yes; OFDMA Subcarrier: No; OFDMA: No; Target Wake Time (TWT): No; Wi-Fi Multimedia (WMM): Yes; 802.1Q VLAN: Yes; Multi-Link Operation (MLO): No; 4K-QAM: No; Same SSID for Different VLANs: Yes
    • Roaming802.11k/v: Yes; 802.11r: Yes; Layer 2 Roaming: Yes; Layer 3 Roaming: Yes; AI Roaming: Yes
    • SaugumasPSK Authentication: Yes; Static Blocklist and Allowlist: Yes; WPA (TKIP), WPA2 (AES), and WPA-PSK: Yes; OWE (Enhanced Open): No; WPA3-SAE/WPA2-PSK: No; WPA3-SAE: No
    • Saugumo ypatybės 802.1X: Yes; ARP Check: No; IP Source Guard: No; LLDP: No; Static ARP Binding: Yes; Proxy ARP: No; Ping: Yes; Traceroute: Yes
    • MaršrutasNAT: Yes; Static IP Address: Yes; DHCP Server: Yes; PPPoE Client: Yes
    • AP MeshMesh Management: Yes; Reyee Mesh: Yes
    • Standalone PortalCaptive Portal: Yes
    • Pralaidumo ribojimas Yes
    • Duomenų kvotaNo
    • Valdymas ir priežiūraDefault Access/Password: Yes; No. of APs on a Self-Organizing Network: 300; Unified Networking for All Network Equipment: Yes
    • Valdymo parinktys Local or Remote Management via RuijieReyee App: Yes; Local Management via the Web Interface: Yes; Remote Management via Ruijie Cloud: Yes; SNMP: No
    • Platformos valdymo funkcijosOptimization of Channel, Transmit Power, and Management Frame Power Settings with Pre- and Post-Optimization Settings Displayed: Yes; Unified Configuration via Ruijie Cloud: Yes; Unified Monitoring via Ruijie Cloud: Yes
