  •   Prieigos taškas Ruijie Reyee RG-RAP2200(F) (Wi-Fi 5, 1267 Mbps)

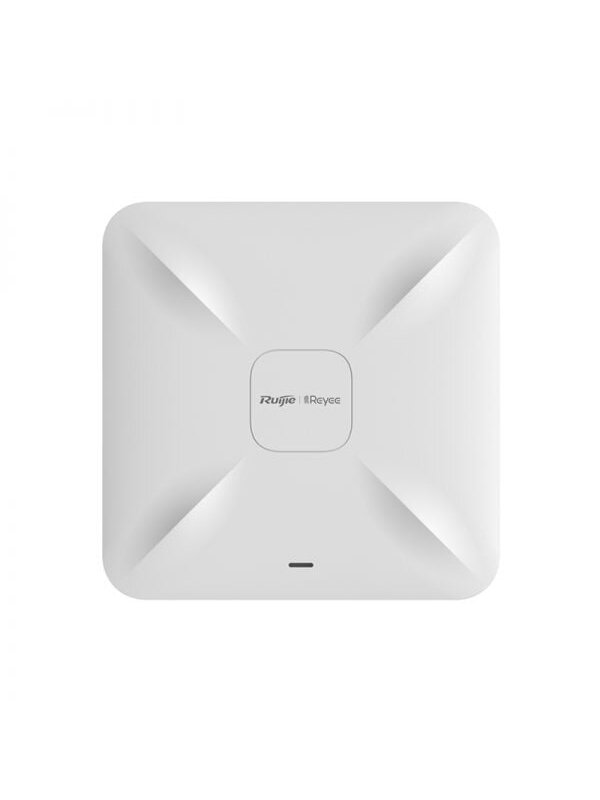

    Prieigos taškas Ruijie Reyee RG-RAP2200(F) (Wi-Fi 5, 1267 Mbps)

    Kodas: RUIJIERGRAP2200F
    Barkodas: 6971693271395
    Pasiteirauti apie prekę
    54.87 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Tipas: Prieigos taškas
    • Modelis: Ruijie Reyee RG-RAP2200(F)
    • Wi-Fi standartas: Wi-Fi 5 (802.11ac Wave2)
    • Prievadai: 2 x 100 Mbps RJ45
    • Wi-Fi greitis: iki 400 Mbps @ 2,4 GHz; 867 Mbps @ 5 GHz
    • Rekomenduojamas prijungtų įrenginių skaičius: 48 (max 110)
    • MIMO technologija: 2x2 MIMO
    • Energijos sunaudojimas: ≤ 12,95 W
    • Maitinimas: 802.3af/at PoE arba 12V 1,5A DC
    • Darbinė temperatūra: nuo 0°C iki 40 °C
    • Garantija: 3 metai
  • Prekės aprašymas
    • Pagrindinis
    • RadioDual-stream dual-band
    • ProtokolaiWi-Fi 5 (IEEE 802.11ac Wave 2/Wave 1), Wi-Fi 4 (IEEE 802.11n), 802.11a/b/g
    • Operating Bands802.11b/g/n: 2.4 GHz ~ 2.4835 GHz; 802.11a/n/ac: 5 GHz: 5.150 GHz～5.350 GHz, 5.470 GHz ~ 5.725 GHz, 5.725 GHz～5.850 GHz
    • AntenaBuilt-in Omnidirectional Antennas (2.4 GHz: 2dBi, 5 GHz: 2dBi)
    • Erdviniai srautai2.4 GHz: 2x2 MIMO, 5 GHz: 2x2 MIMO
    • Maksimalus pralaidumasUp to 400 Mbps at 2.4 GHz, Up to 867 Mbps at 5 GHz, 1.267 Gbps per AP
    • ModuliacijaOFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps; DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps; MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
    • Gavimo jautrumas11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps); 11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15; 11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9); 11ac HT40: -79 dBm (MCS0), -57 dBm (MCS9); 11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
    • Maksimali perdavimo galia5.725 GHz～5.850 GHz: ≤20 dBm (EIRP); 5.150 GHz～5.350 GHz: ≤20 dBm (EIRP); 2.4 GHz～2.4835 GHz: ≤20 dBm (EIRP) (Country-specific restrictions apply)
    • Dydis194 mm × 194 mm × 35 mm (excluding mounting kits)
    • Svoris0.45 kg (excluding mounting kits)
    • Service Ports2 x 10/100M Base-T LAN (1 port supports PoE)
    • LED indikatoriusSingle indicator (green light)
    • Maitinimas802.3af/802.3at PoE, local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
    • Energijos sunaudojimas≤ 12.95 W
    • AplinkosaugaOperating temperature: 0°C～40°C; Storage temperature: -40°C～70°C; Operating humidity: 5%～95% (non-condensing); Storage humidity: 5%～95% (non-condensing)
    • MontavimasCeiling/wall-mountable
    • Saugos standartasGB4943, IEC 60950-1
    • EMC standartasGB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035
    • Vibracijos standartasIEC61373
    • Radijo standartasSRRC certification, EN300 328, EN301 893
    • MTBF>400,000H
    • Darbinis režimasAP mode and routing mode
    • WLANMaximum number of clients: 110, Recommended number of clients: 40 (8 at 2.4 GHz, 32 at 5 GHz), Up to 8 SSIDs, Support SSID hiding, Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID, SSID-based and radio-based STA limit, Support Layer 2 user isolation
    • RoamingSupport Layer 2 and Layer 3 roaming
    • SaugumasSupport PSK authentication, Support static blacklist and whitelist, Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
    • MaršrutasSupport static IP address, DHCP, PPPoE Dial Up
    • Valdymas ir priežiūraSupport unified networking of all network equipment, Support local or remote management with Ruijie Cloud APP, Support local management with web, Support remote management with Ruijie Cloud platform
    • Platformos valdymo funkcijosAutomatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
