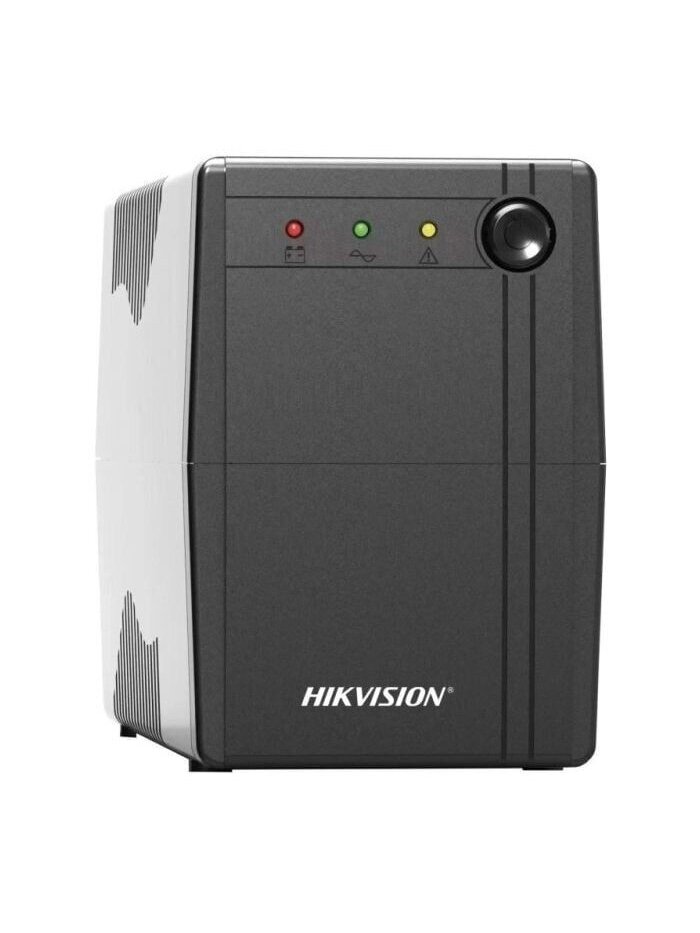

HIKVISION UPS DS-UPS1000 (1000VA/600W, Tower)

Tipas: UPS (nepertraukiamo maitinimo šaltinis)
Modelis: DS-UPS1000
Galia: 1000VA/600W
Jungtys: 2 x Schuko
Bangos forma: Simulated sinus
UPS tipas: Offline
Matmenys: 274x95x139 mm (GxPxA)
Baterija: 1x12V/9Ah
Savybės: AVR
Apsaugos nuo: viršįtampių, perkrovos, trumpojo jungimo, perdidelio akumuliatoriaus iškrovimo
Srovės įtampa (INPUT): 230 VAC±10%
Srovės įtampa (OUTPUT): nuo 210 VAC iki 235 VAC
Prekės ženklas: Hikvision

Baterija

Baterijos tipas12 V/9 Ah, lead-acid battery
Įkrovimo laikas4-6 hours recover to 90% capacity
Typical Backup TimeRun time at 60w: 60 min Run time at 150w: 15 min Run time at 300w: 2 min

Bendra informacija

Dydis274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
Darbo sąlygosdrėgmė30% to 90% (non-condensing)
Darbinė temperatūra0 °C to 40 °C (32 °F to 104 °F）
SvorisApprox. 5.4 kg (11.9 lb)

Indikatorius

SignalizacijaCharging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding
EkranasLED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow

įvestis

Input Frequency50/60 Hz self-adaptive
Įėjimo įtampos diapazonas140 VAC to 290 VAC
Kištuko tipasSchuko

Sąsaja

Communicate PortsNo

išvestis

Outlet Number2
Outlet TypeSchuko
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range210 VAC to 235 VAC
Perjungimo laikas≤ 10 ms
Bangos formaPWM

Maitinimas

UPS Capacity1000 VA / 600 W

Apsauga

Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection
