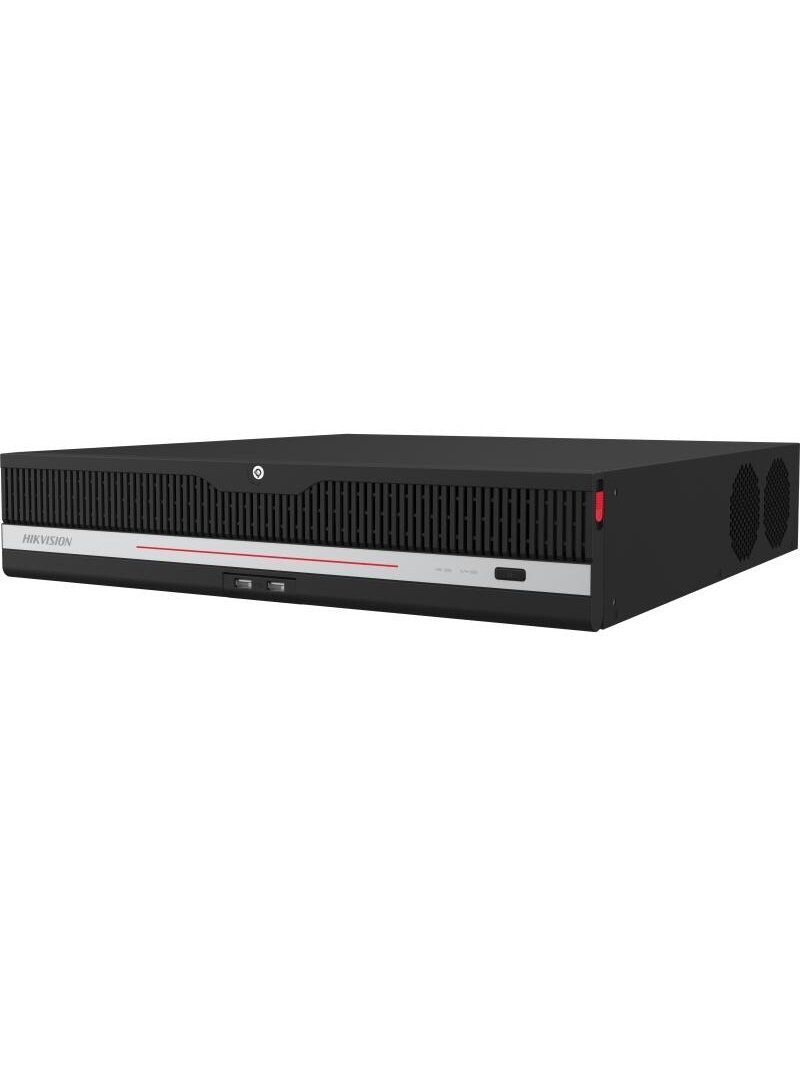

Hikvision NVR Hikvision iDS-9632NXI-M8/AI(B)

Iki 2 kanalų @32 MP / 2 kanalų @24 MP / 4 kanalų @12 MP / 8 kanalų @8 MP / 16 kanalų @4 MP / 32 kanalų @1080p dekodavimo pajėgumas
Vaizdo formatai: H.265+/H.265/H.264+/H.264
Galima prijungti iki 32 IP kamerų
Giliojo mokymosi pagrindu sukurta vaizdo analitika: apsauginių šalmų nedėvėjimo aptikimas, įvykių aptikimas (bėgančių žmonių, žmonių susibūrimo, smurtinių veiksmų, mobiliųjų telefonų naudojimo ir kt.)

AI Open Platform Performance Auto-Switch Video Analysis2 engines in total,one engine can support up to 16ch,(switch time between 10 to 3600 seconds)

Live Video Analysis2 engines in total,one engine can support up to 4ch,(4ch@4MP，2ch@6MP，1ch @8MP)
Offline Picture Analysis4 image per GPU per second or 1 image per GPU per second ( Large model)
Scheduled Capture Analysis2 engines in total,one engine can support up to 16ch, (switch time between 3 to 3600 seconds)
Sąsajos
Ispėjamojo signalo įvestis/išvestis16/9
TalpaUp to 16 TB capacity for each HDD
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
SATA8 SATA interfaces; 3.5-inch HDD
Serijinė sąsaja1 RS-232, 1 RS-485 (full-duplex)
USB sąsajaFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
eSATA1 eSATA interface
Iškodavimas
Iškodavimo pajėgumasUp to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080P
Vaizdo iškodavimo formatasH.265/H.265+/H.264/H.264+
Įrašymo raiška32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Sinchroninis atkūrimas16-ch
Bendra informacija
Energijos sunaudojimas≤ 50 W (without HDD)
Dydis442 × 460 × 88 mm
GUI kalbaEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Maitinimo šaltinis100 to 240 VAC, 50 to 60 Hz
Svoris≤ 9 kg (without HDD)
Darbinė drėgmė10 to 90%
Darbinė temperatūra-10 to 55° C (14 to 131° F)
Išmanioji analizė
AI by NVRPre-installed AI Algorithm Package Human (3 Algorithm models ) 1. Facial recognition: 2. People counting: regional people counting, people counting statistics 3. PPE: safety helmets and reflective vests detection Vehicle (2 Algorithm models ) 1. Vehicle attributes: vehicle brand,vehicle color, vehicle type 2. Non-motorized vehicle detection: motorcycle, bicycles Dangerous Event (2 Algorithm models ) 1. Fire and smoke detection 2. Occupation of fire escape Behavior (3 Algorithm models ) 1. Street level behavior : falling down detection, people gathering detection, fast moving detection, physical conflict detection 2. Indoor: playing phone, sleeping on duty, absence, number of people allowed, overstaying detection 3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection 4. Smoke detection, call detection AIOP (Up to 16 models) Model type: detection model, classification model, mixed model (detection model and classification model) 1 engines in total, One engine can support four algorithm models; each algorithm model supports one real-time video stream analysis or a maximum of 8 auto-switch video analyses (switch time between 10 to 3600 seconds)
Variklis3 * KT2 (2 for live video analysis, 1 for lager model algorithm secondary analysis)
Tinklas
APIONVIF (profile S/G); SDK; ISAPI
Suderinama naršyklėIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Tinklo sąsaja2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
ProtokolaiTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Nuotolinis prisijungimas128
RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
Vaizdas ir garsas
Garso išvestis1-ch, RCA (Linear, 1 KΩ)
HDMI 1 OutputHDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
HDMI 2 OutputHDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
IP vaizdo įrašų įvestis32-ch
Įeinantis pralaidumas320 Mbps
Išeinantis pralaidumas400 Mbps
Dvipusis greitis1-ch, RCA (2.0 Vp-p, 1 k Ω)
VGA 1 Output1080P (1920 × 1080)/60 Hz
VGA 2 Output1080P (1920 × 1080)/60 Hz
Vaizdo išvesties režimasHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
