  •   Hikvision NVR DS-7608NI-I2/8P

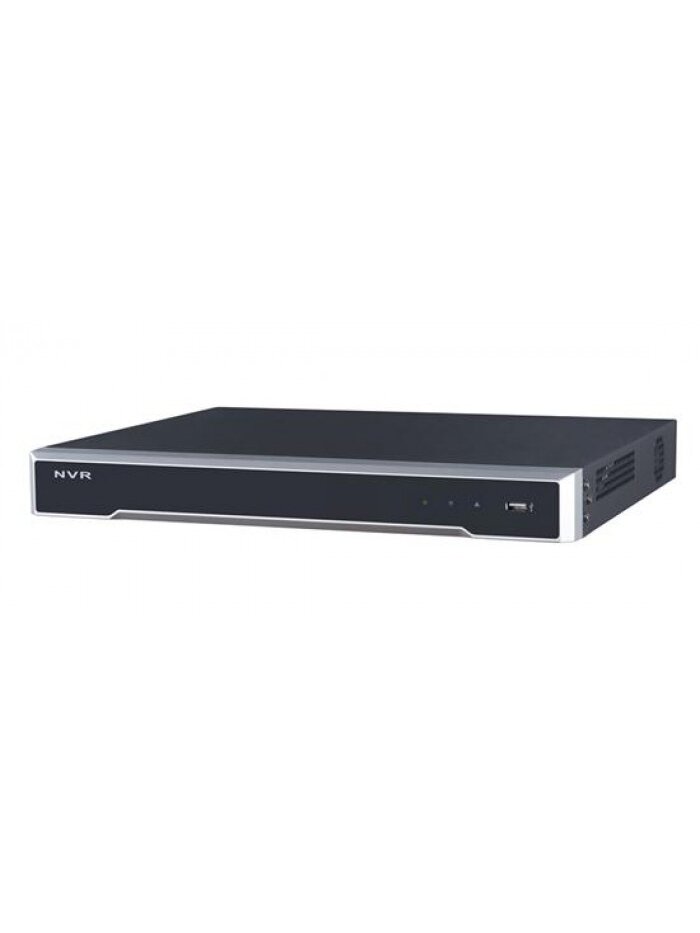

    Hikvision NVR DS-7608NI-I2/8P

    Kodas: NVRDS7608NI-I2/8P
    Barkodas: 6954273628956
    Pasiteirauti apie prekę
    384.56 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 8 kanalų NVR
    • 8 PoE sąsajos
    • 2 SATA sąsajos (iki 6TB kiekvienam HDD)
    • Įeinantis srautas iki 80Mbps
    • Iki 12 Mpx rašymo raiška
    • H.265/H.265+/H.264/H.264+/MPEG4
    • Garso įvestis/išvestis
    • Pavojas signalo įvestis/išvestis
    • HDMI/VGA išvestis
  • Prekės aprašymas

    Model

    DS-7608NI-I2/8P

    DS-7616NI-I2/16P

    Video/Audio input

    IP video input

    8-ch

    16-ch

    Up to 12 MP resolution

    Two-way audio

    1-ch, RCA (2.0 Vp-p, 1kΩ)

    Network

    Incoming bandwidth

    80 Mbps

    160 Mbps

    Outgoing bandwidth

    256 Mbps

    Remote connection

    128

    Video/Audio output

    Recording resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF

    HDMI output resolution

    4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz,

    1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

    VGA output resolution

    1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

    Audio output

    1-ch, RCA (Linear, 1 KΩ)

    Decoding

    Decoding format

    H.265/H.264/H.264+/MPEG4

    Live view / Playback resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF

    Synchronous playback

    8-ch

    16-ch

    Capability

    4-ch @ 4K, or 16-ch @ 1080p

    Hard disk

    SATA

    2 SATA interfaces for 2HDDs

    Capacity

    Up to 6TB capacity for each HDD

    External interface

    Network interface

    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

    USB interface

    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

    Alarm in/out

    4/1

    POE Interface (for /P series NVR only)

    Interface

    8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

    16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

    Power

    ≤120W

    ≤200W

    Supported standard

    IEEE 802.3 af/at

    General

    Power supply

    100 to 240 VAC, 50 to 60 Hz

    Power

    ≤180 W

    ≤280 W

    Consumption (without hard disk)

    ≤15 W (without enabling PoE)

    Working temperature

    -10 to +55ºC (14 to 131ºF)

    Working humidity

    10 to 90 %

    Chassis

    380mm chassis

    Dimensions(W × D × H)

    380 × 290 × 45mm (15.0" × 11.4" × 1.8")

    Weight(without hard disk)

    ≤ 3 Kg (6.6 lb)
