Prekių katalogas

Pradžia/PREKIŲ KATALOGAS/Hikvision IP kameros

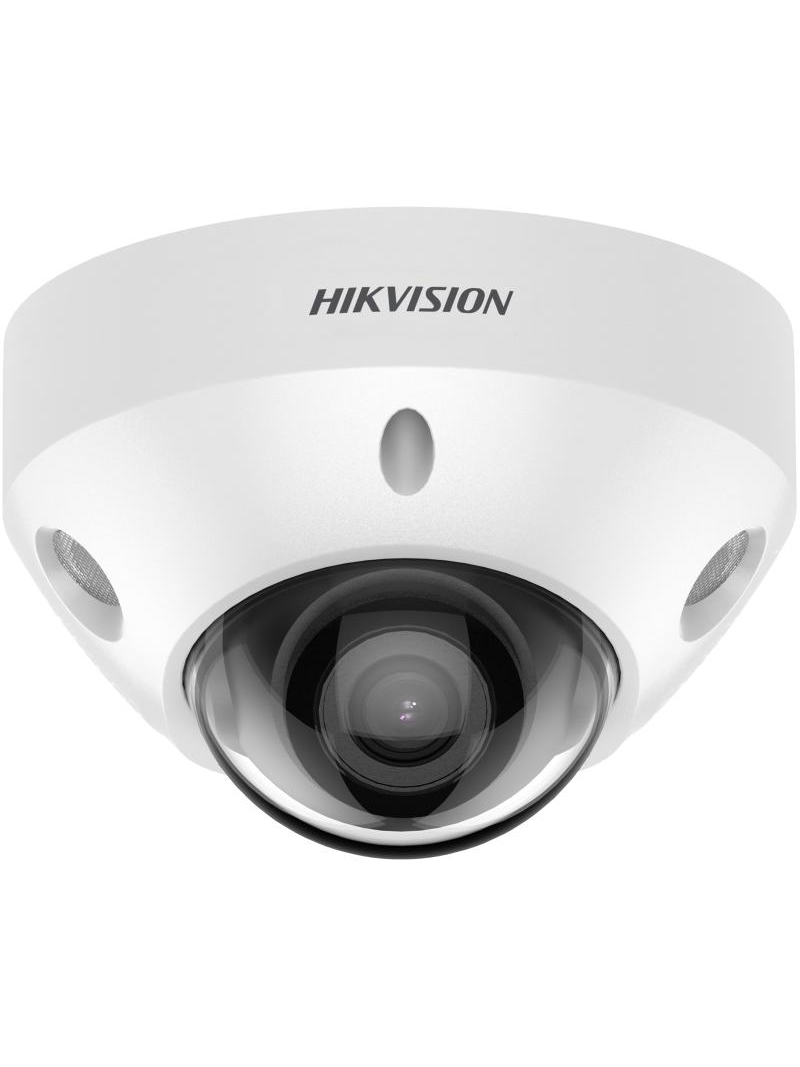

  •   Hikvision mini dome DS-2CD2547G2-LS(C) F4 (balta, 4 MP, 30 m. IR, ColorVu)

    Hikvision mini dome DS-2CD2547G2-LS(C) F4 (balta, 4 MP, 30 m. IR, ColorVu)

    Kodas: KIPDS2CD2547G2LSCF4
    Barkodas: 6931847137540
    Pasiteirauti apie prekę
    248.56 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • MP (MegaPixel): 4 MP
    • Objektyvas: 4 mm, horizontalus FOV: 95°
    • Technologija: ColorVu
    • LED apšvietimas: Taip
    • Integruotas mikrofonas: Taip
    • Naktinis pašvietimas: 30 m
    • Vieta microSD talpai: Taip, 256GB
    • Darbo sąlygos: -30 °C iki 60 °C
    • Saugos lygis: IP67
    • Vaizdo suspaudimas: H.265+
    • WiFi: Ne
    • Lauko/vidaus: Lauko
    Baterija
    Ne
    Forma
    Kupolinė
    Integruotas maitinimas (POE)
    Taip
    Lauko kamera
    Taip
    Naktinis pašvietimas
    iki 30 m
    Objektyvas
    Siauras kampas <100°
    Prekės ženklas
    HIKVISION
    Priedas
    Ne
    Rezoliucija
    2K (4 MP)
    Ryšys
    LAN (Laidu)
    Spalva
    Balta
  • Prekės aprašymas
    • Camera
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
    • Shutter Time1/3 s to 1/100,000 s
    • Day & Night24/7 Color imaging
    • Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
    • Lens
    • Lens TypeFixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

      4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°

    • Lens MountM16
    • Iris TypeFixed
    • ApertureF1.0
    • Depth of Field

      2.8 mm: 2.3 m to ∞

      4 mm: 3.2 m to ∞

    • DORI
    • DORI

      2.8 mm:

      D: 58 m

      O: 23 m

      R: 11 m

      I: 6 m

      4 mm:

      D: 77 m

      O: 30 m

      R: 16 m

      I: 8 m

    • Illuminator
    • Supplement Light TypeWhite Light
    • Supplement Light RangeUp to 30 m
    • Smart Supplement LightYes
    • Video
    • Main Stream

      50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

    • Video Compression

      Main stream: H.265/H.264/H.265+/H.264+

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

      *Third stream is supported under certain settings.

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR/VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Audio
    • Environment Noise FilteringYes
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
    • Network Storage

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Wide Dynamic Range (WDR)130 dB
    • SNR≥ 52 dB
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, HLC, 3D DNR
    • Image Parameters SwitchYes
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
    • Built-in MicrophoneYes
    • Audio

      -LS:

      1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

      1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Alarm

      -LS:

      1 input, 1 output (max. 12 VDC, 20 mA)

    • Reset KeyYes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
    • LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
    • Smart Event

      Line crossing detection, intrusion detection, region entrance detection, region exiting detection

      Scene change detection

    • Deep Learning Function
    • Face CaptureYes
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • Power

      12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 W

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

    • MaterialBase: aluminum, cover: plastic
    • DimensionØ113.6 mm × 72.6 mm (Ø4.5" × 2.9")
    • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
    • WeightApprox. 400 g (0.9 lb.)
    • With Package WeightApprox. 635 g (1.4 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
    • Approval
    • EMC

      FCC (47 CFR Part 15, Subpart B)

      CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

      RCM (AS/NZS CISPR 32: 2015)

      IC (ICES-003: Issue 7)

      KC (KN32: 2015, KN35: 2015)

    • Safety

      UL (UL 62368-1)

      CB (IEC 62368-1: 2014+A11)

      CE-LVD (EN 62368-1: 2014/A11: 2017)

      LOA (IEC/EN 60950-1)

      BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

    • Environment

      CE-RoHS (2011/65/EU)

      WEEE (2012/19/EU)

      Reach (Regulation (EC) No 1907/2006)

    • ProtectionIP67: IEC 60529-2013,IK08: IEC 62262:2002
