  •   Hikvision DS-2XS6F45G1-IC2/4G(2.8mm)

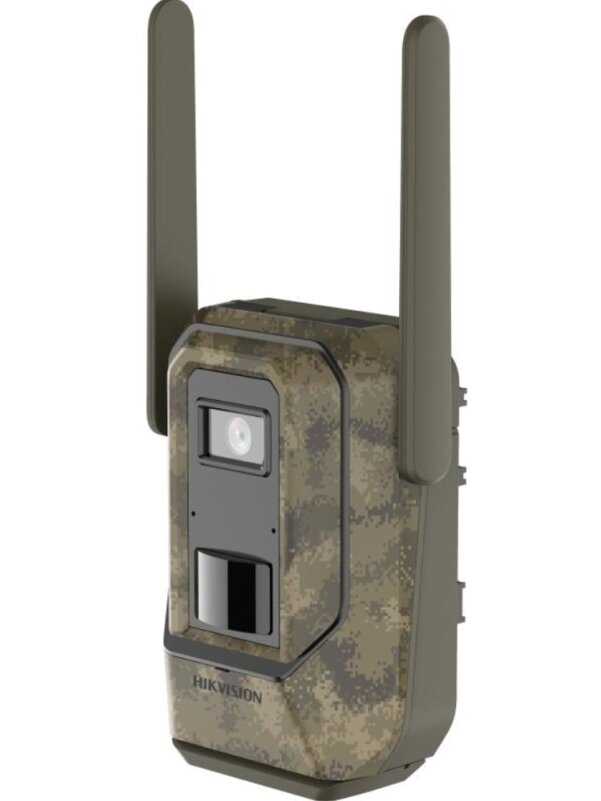

    Hikvision DS-2XS6F45G1-IC2/4G(2.8mm)

    Kodas: KIPDS2XS6F45G1IC24G
    Barkodas: 6942160452838
    Pasiteirauti apie prekę
    534.14 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 5 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • IP kamera
    • Gamintojas: Hikvision
    • Modelis: DS-2XS6F45G1-IC2/4G(2.8mm)
    • Rezoliucija: 4MP
    • Jutiklis: 1/3’’ CMOS
    • IR pašvietimas: iki 15m
    • Triukšmo mažinimas: 3D DNR
    • Plačiajuostė dinamika (WDR): 120dB
    • Foninio apšvietimo kompensacija (BLC)
    • Kompresija: H.265+
    • Apsaugos klasė: IP67
  • Prekės aprašymas
    • Kamera
    • Sensorius1/3" Progressive Scan CMOS
    • Maks. rezoliucija2688 × 1520
    • Min. apšvietimasColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
    • Užrakto greitis1 s to 1/100,000 s
    • Day & NightIR cut filter
    • Lęšis
    • Focal Length & FOV

      2.8 mm, horizontal FOV 103.6°, vertical FOV 57.2°, diagonal FOV 121.6°

      4 mm, horizontal FOV 81.1°, vertical FOV 48.6°, diagonal FOV 90.6°

    • DiafragamaF1.6
    • Lęšio montavimasM12
    • DORI
    • DORI

      2.8 mm: D: 63.6 m, O: 25.2 m, R: 12.7 m, I: 6.4 m

      4 mm: D: 66.0 m, O: 26.2 m, R: 13.2 m, I: 6.6 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • IR bangos ilgis850 nm
    • Papildomo apšvietimo diapazonasUp to 15 m
    • Išmanus papildomas apšvietimasYes
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Vaizdo suspaudimasMain stream: H.265
    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.265 tipasBaseline Profile,Main Profile,High Profile
    • Bitų greičio kontrolėCBR,VBR
    • Scalable Video Coding (SVC)H.265
    • Garsas
    • Pašalinių garsų šalinimasYes
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso tipasMono sound
    • Internetas
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
    • ProtokolaiTCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Vidinė atmintis

      Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasiVMS-4200,Hik-Connect
    • Naršyklė

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

      Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

    • Mobile Communication
    • Dažnis

      4G model:

      LTE-TDD Band 38/40/41

      LTE-FDD Band 1/3/5/7/8/20/28

      WCDMA Band 1/5/8

      GSM 850/900/1800MHz

      4G LA model：

      LTE-TDD Band 38/40

      LTE-FDD Band 1/2/3/4/5/7/8/28/66

      WCDMA Band 1/2/3/4/5/8

      GSM 850/900/1800/1900MHz

    • StandartasLTE-TDD/LTE-FDD/WCDMA/GSM
    • Nuotrauka
    • Diena/Naktis režimasDay,Night,Auto,Schedule
    • Wide Dynamic Range (WDR)120 dB
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Nuotraukų pagražinimasBLC,HLC,Defog,3D DNR
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
    • SNR≥ 52 dB
    • Transducer
    • Transducer TypePIR
    • Fiksavimo diapazonasUp to 15 m
    • Fiksavimo kampas2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°
    • Satellite Positioning
    • Satellite Positioning DetectionSupport GPS and searching longitude and latitude of the device
    • Sąsaja
    • Įmontuotas mikrofonas1 built-in microphone
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • Interneto sąsaja1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
    • Perkrovimo mygtukas

      Yes,

      Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

    • Funkcijos
    • Pagrindinės funckcijosException,PIR Alarm
    • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording
    • Pagrindinis
    • Sistemos parametrai6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W
    • Pagrindinės funkcijosHeartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
    • MedžiagaPlastic
    • DydisWith antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pakuotės dydis260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
    • SvorisApprox. 0.63 kg (1.39 lb.)
    • Svoris su įpakavimuC1: approx. 1.588 kg (3.5 lb.), C2: approx. 1.848 kg (4.07 lb.)
    • Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Baterija
    • Baterijos tipasChargeable lithium battery or 5AA dry cell
    • Battery Voltage

      Rated voltage: 7.2 VDC

      Charging voltage: 8.4 VDC

      Discharging cut-off voltage: 5.6 VDC

    • Talpa9.4 Ah
    • Darbo sąlygos (temperatūra)-20 °C to 60°C (-4 °F to 140 °F)
    • Cycle Lifetime

      Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F).

      Cycle lifetime: 125 days

      Make sure the battery is fully charged before using the device.

    • Patvirtinimai
    • RFCE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
    • EMC

      CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014,

      RCM: AS/NZS CISPR 32: 2015

    • SaugumasCB: IEC 62368-1: 2014+A11
    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ApsaugaIP67: IEC 60529-2013
