  •   Hikvision DS-2AE4225TI-D

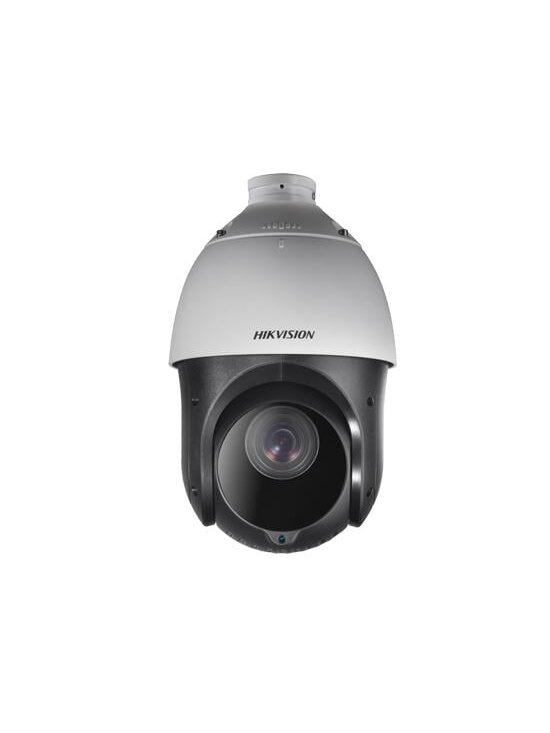

    Hikvision DS-2AE4225TI-D

    Kodas: KIPSDS2AE4225TI-D
    Barkodas: 6941264023555
    Pasiteirauti apie prekę
    426.99 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 2MP TURBO HD PTZ kamera
    • x25 artinimas (-4.8°~120°)
    • IR apšvietimas iki 100m
    • 3D DNR / 120dB WDR
    • 3D pozicijos funkcija
    • HD1080p
    • 256 presets / 10 patrols
    • 12V
    • IP66
  • Prekės aprašymas

    Camera

    Model

    DS-2AE4225TI-D

    Image Sensor

    1/2.8" progressive scan CMOS

    Max. Image Resolution

    1920 × 1080

    Frame Rate

    50Hz: 25fps @(1920 × 1080)

    60Hz: 30fps @(1920 × 1080)

    Min. Illumination

    Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)

    0 lux with IR

    Digital Zoom

    16×

    White Balance

    AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR

    AGC

    AUTO/MANUAL

    DNR

    3D DNR

    WDR

    ≥ 120 dB

    Shutter Time

    PAL: 1/1 s to 1/10,000 s

    NTSC: 1/1 s to 1/10,000 s

    Day & Night

    IR cut filter

    Privacy Mask

    8 programmable privacy masks

    Lens

    Focus Mode

    Auto/Semiauto/Manual

    Focal Length

    4.8 mm to 120 mm, 25× Optical

    Aperture Range

    F 1.6 to F 3.5

    Horizontal Field of View

    57.6° to 2.5° (wide-tele)

    Min. Working Distance

    10 mm to 1500 mm (wide to tele)

    Zoom Speed

    Approx. 3.2 s (optical, wide to tele)

    Pan and Tilt

    Pan Range

    360° endless

    Pan Speed

    Pan manual speed: 0.1° to 80°/s

    Pan preset speed: 80°/s

    Tilt Range

    -15° to 90° (auto flip)

    Tilt Speed

    Tilt manual speed: 0.1° to 80°/s

    Tilt preset speed: 80°/s

    Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

    Presets

    256

    Patrol

    10 patrols, up to 32 presets per patrol

    Pattern

    5 patterns, with the total recording time no less than 10 minutes

    Power-off Memory

    Support

    Park Action

    Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

    PTZ Position Display

    ON/OFF

    Preset Freezing

    Support

    Scheduled Task

    Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero

    Calibration/None

    Infrared

    IR Distance

    Up to 100 m

    IR Intensity

    Automatically adjusted depending on the zoom ratio

    Input/Output

    Video Output

    1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)

    RS-485 Interface

    Half-duplex mode

    Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

    UTC function

    UTC protocol (or HIKVISION-C protocol in previous DVR)

    General

    Menu Language

    English

    Power

    12 VDC

    Max.20 W (IR:7 W)

    Working Temperature

    -30° C to 65° C (-22° F to 149° F)

    Working Humidity

    90% or less

    Protection Level

    IP66 standard (outdoor dome)

    TVS 4,000 V lightning protection, surge protection and voltage transient protection

    Mounting

    Various mounting modes optional

    Dimension

    Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")

    Weight (approx.)

    2 Kg (4.41 Ib.)
