  •   Hikvision dome iDS-2CD7547G0/P-XZHS F2.8-12

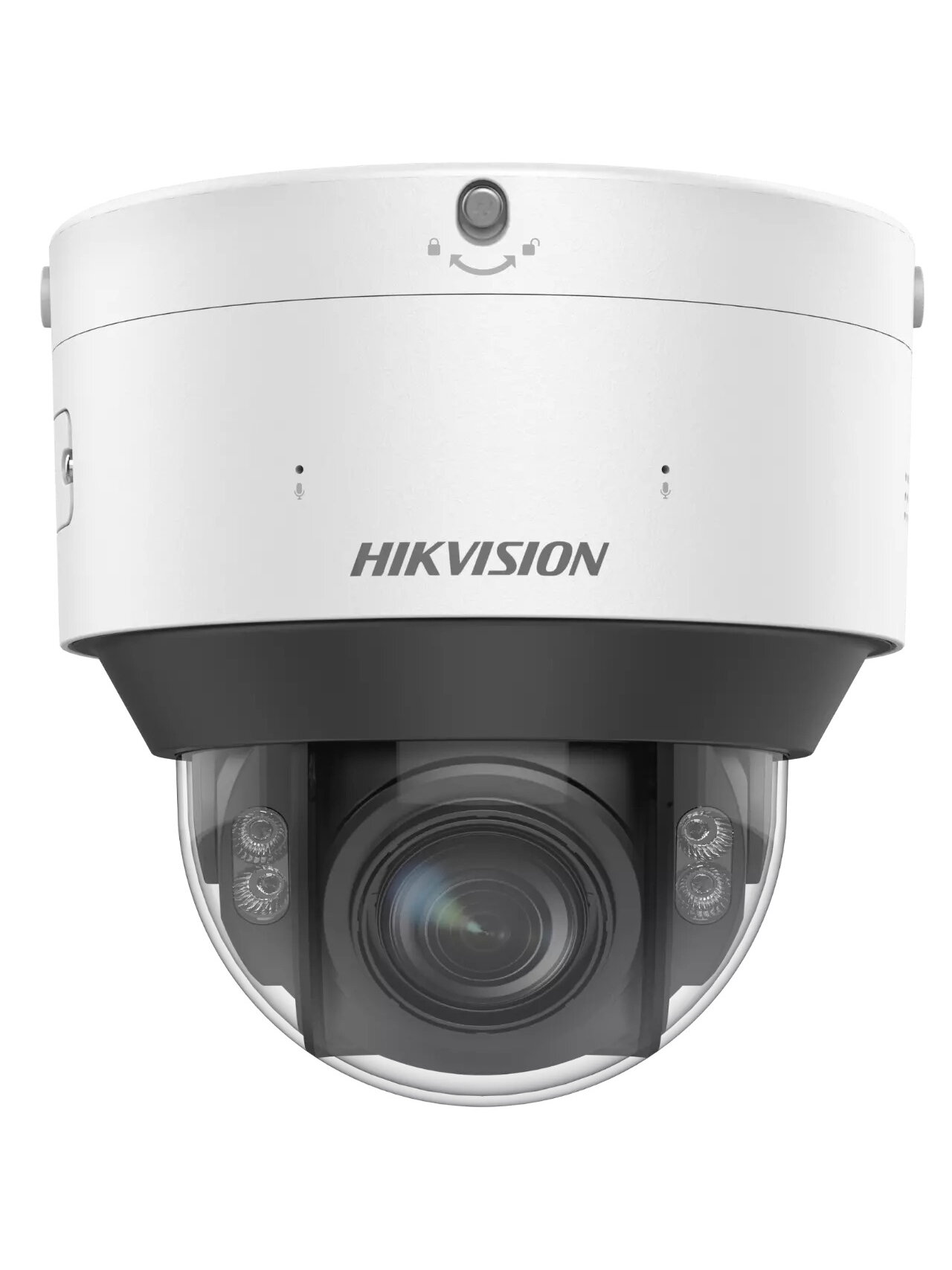

    Hikvision dome iDS-2CD7547G0/P-XZHS F2.8-12

    Kodas: KIPIDS2CD7547G0PXZH
    Barkodas: 6931847195854
    Pasiteirauti apie prekę
    883.56 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 5 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 4MP kamera
    • ColorVu technologija
    • H.265+ suspaudimo technologija
    • 140dB WDR
    • 5 srautai, tinkantys įvairioms programoms
    • IP67, IK10
    • Numerių atpažinimas (ANPR)
    Baterija
    Ne
    Forma
    Kupolinė
    Integruotas maitinimas (POE)
    Taip
    Lauko kamera
    Taip
    Naktinis pašvietimas
    iki 30 m
    Objektyvas
    Reguliuojamas kampas
    Prekės ženklas
    HIKVISION
    Priedas
    Ne
    Rezoliucija
    2K (4 MP)
    Ryšys
    LAN (Laidu)
    Spalva
    Balta
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija2688 × 1520
    • Min. apšvietimasColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
    • Užrakto greitis1 s to 1/100,000 s
    • Day & Night

      IR cut filter

      Blue glass module to reduce ghost phenomenon

    • Kampo keitimasPan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°
    • Lęšis
    • Focal Length & FOV2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
    • FokusavimasAuto, semi-auto, manual
    • Rainelės tipasP-iris
    • DiafragamaF1.0 to F1.2
    • DORI
    • DORI

      Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m

      Tele: D: 140.7 m, O: 55.8 m, R: 28.1 m, I: 14.1 m

    • Apšvietimas
    • IR bangos ilgis850 nm
    • Išmanus papildomas apšvietimasYes
    • Papildomo apšvietimo diapazonas2.8 to 12 mm: 30 m
    • Papildomo apšviešimo tipasHybrid (IR and White Light)
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Trečias srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Ketvirtas srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Penktasis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      Fourth stream: H.265/H.264/MJPEG,

      Fifth stream: H.265/H.264/MJPEG

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR,VBR
    • Tikslinis apkarpymasYes
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)4 fixed region(s) for each stream
    • Garsas
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
    • Garso tipasMono sound
    • Pašalinių garsų šalinimasYes
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIONVIF, ISAPI, SDK, ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasiVMS-4200, Hik-Connect
    • Naršyklė

      Plug-in required live view: IE 10, IE11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
    • Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
    • Wide Dynamic Range (WDR)140 dB
    • Privatumo kaukė8 programmable polygon privacy masks, mask color or mosaic configurable
    • SNR≥ 52 dB
    • Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog, EIS
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Sąsaja
    • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    • Garsas

      1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

    • Įmontuotas mikrofonasYes, 2 built-in microphones
    • Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
    • Įmontuotas garsiakalbisMax. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
    • RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • Galia12 VDC, max. 100 mA
    • Wiegand1 Wiegand (CardID 26bit,SHA-1 26bit,Hik 34bit, NEWG 72 bit)
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
    • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
    • Išmaniosios funkcijos
    • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
    • Kelių eismo ir transporto priemonių aptikimas



      Blocklist and allowlist: up to 10000 records

      Support license plate recognition of motorcycles (only in checkpoint scenario)

      Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

      License plate recognition rate ≥98%

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block;

      24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block;

      PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W

    • MedžiagaAluminum alloy body
    • DydisØ160 × 159.5 mm (Ø6.3" × 6.3")
    • Pakuotės dydis251 × 215 × 189 mm (9.9" × 8.5" × 7.4")
    • SvorisApprox. 2100 g (4.62 lb.)
    • Svoris su įpakavimuApprox. 2850 g (6.28 lb.)
    • Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Sandėliavimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,privacy mask, watermark, IP address filter, flash log, control timeout
    • ŠildytuvasYes
    • Rasos šalinimasYes
    • Patvirtinimai
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7,

      KC: KN32: 2015, KN35: 2015

    • Saugumas

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

      LOA: IEC/EN 60950-1

    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
    • Apsauga nuo korozijos-Y model: NEMA 4X (NEMA 250-2018)
    • AutomatikaEN50121-4
    • KitaPVC FREE
