  •   Hikvision dome iDS-2CD7186G0-IZS F2.8-12 (4 MP, F2.8-12mm DarkFighter)

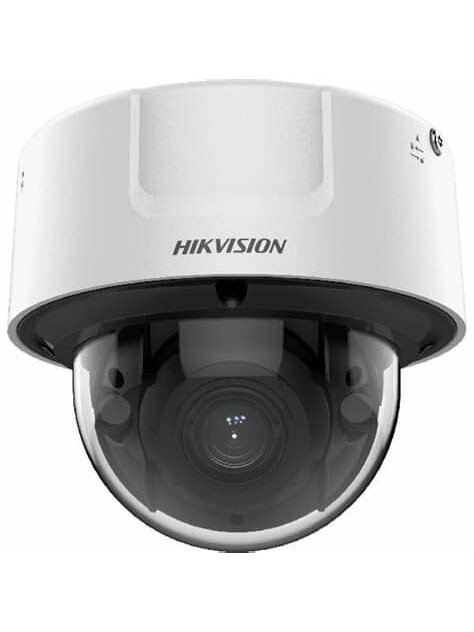

    Hikvision dome iDS-2CD7186G0-IZS F2.8-12 (4 MP, F2.8-12mm DarkFighter)

    Kodas: KIP2CD7186G0IZSF28
    Barkodas: 6931847169251
    Pasiteirauti apie prekę
    602.90 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 4MP IP Dome kamera
    • Motorizuotas varifokalinis objektyvas
    • Garso sąsaja (Audio/Alarm)
    • 120dB WDR
    • DarkFighter technologija
    • H.265/H.264
    • 2.8-12mm objektyvas
    • IR nuotolis iki 30m
    • 5 srautai ir 5 pasirinktiniai srautai
    • IK10
    Baterija
    Ne
    Forma
    Kupolinė
    Integruotas maitinimas (POE)
    Taip
    Lauko kamera
    Taip
    Naktinis pašvietimas
    iki 30 m
    Objektyvas
    Reguliuojamas kampas
    Prekės ženklas
    HIKVISION
    Priedas
    Ne
    Rezoliucija
    4K (8 MP)
    Ryšys
    LAN (Laidu)
    Spalva
    Balta
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija3840 × 2160
    • Min. apšvietimasColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Užrakto greitis1 s to 1/100,000 s
    • Day & Night

      IR cut filter

      Blue glass module to reduce ghost phenomenon

    • Kampo keitimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
    • Lęšis
    • Focal Length & FOV

      2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3°

      8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°

    • FokusavimasAuto,Semi-auto,Manual
    • Rainelės tipasP-iris
    • Diafragama

      2.8 to 12 mm: F1.2 to 2.5

      8 to 32 mm: F1.7 to F1.73

    • DORI
    • DORI

      Wide:

      2.8 to 12 mm: D (Detect): 87 m, O (Observe): 34.5 m, R (Recognize): 17.4 m, I (Identify): 8.7 m

      8 to 32 mm: D (Detect): 218 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m

      Tele:

      2.8 to 12 mm: D (Detect): 216 m, O (Observe): 85.7 m, R (Recognize): 43.2 m, I (Identify): 21.6 m

      8 to 32 mm: D (Detect): 580 m, O (Observe): 230.2 m, R (Recognize): 116 m, I (Identify): 58 m

    • Apšvietimas
    • IR bangos ilgis850 nm
    • Išmanus papildomas apšvietimasYes
    • Papildomo apšvietimo diapazonas

      2.8 to 12 mm: 30 m

      8 to 32 mm: 50 m

    • Papildomo apšviešimo tipasIR
    • AI Open Platform
    • Model Specification

      Up to 4 models,

      Model type: detection model, classification model, mixed model (detection model and classification model)

    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Trečias srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Ketvirtas srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Penktasis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      Fourth stream: H.265/H.264/MJPEG,

      Fifth stream: H.265/H.264/MJPEG

    • Vaizdo bitų greitis32 Kbps to 16 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)4 fixed regions for each stream
    • Tikslinis apkarpymasYes
    • Garsas
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Garso tipasMono sound
    • Pašalinių garsų šalinimasYes
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Vidinė atmintis

      NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
    • KlientasiVMS-4200,Hik-Connect,Hik-Central
    • Naršyklė

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
    • Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger
    • Wide Dynamic Range (WDR)120 dB
    • Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
    • SNR≥ 52 dB
    • Privatumo kaukė8 programmable polygon privacy masks
    • Vaizdo stabilizavimasEIS
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Sąsaja
    • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    • Garsas1 input (line in), 1 output (line out), 3.5 mm connector
    • Įmontuotas mikrofonasYes,1 built-in microphone
    • Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • Galia12 VDC, max. 100 mA
    • Funkcijos
    • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
    • Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection
    • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
    • Išmaniosios funkcijos
    • Multi-target-type Detection

      Supports simultaneous detection and capture of human body, face, and vehicle,

      Gets 7 face features,

      Gets 13 human body features,

      Gets 2 vehicle features,

      Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle

    • Veido atpažinimas

      Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

      Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

      Uploads face with background and closed-up face pictures,

      Supports best shot and quick shot for capture mode,

      Gets 7 face features

    • Face Comparison

      Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

      Supports face library encryption

    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

      Support combined event alarm triggering

    • People Counting

      Supports Multi-Dimension People Counting,

      Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

      Supports real-time uploading and uploading by statistic cycle,

      Supports generating daily, weekly, monthly or annually reports,

      Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

      Supports face feature deduplication,

      Supports people flow data replenishment

    • Queue Management

      Supports up to 8 detection regions, and independent arming schedule and linkage method

      Supports 2 detection modes: regional people queuing-up, waiting time detection

      Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

      Supports raw data export for further analysis

      Supports real-time data uploading and scheduled data uploading

      Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

      Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

    • Heat Map

      A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

      Two report types are available, space heat map and time heat map line chart.

    • Hard Hat Detection

      Detects up to 30 human targets simultaneously

      Supports up to 4 shield regions

    • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
    • Regional People Counting

      Supports up to 8 detection regions, and independent arming schedule and linkage method

      Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

      Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

      Supports searching real-time number of people

      People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

      Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

      Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

    • On/Off Duty Detection

      Supports up to 8 detection regions, and independent arming schedule and linkage method

      Supports 2 detection modes: absence detection, on/off duty detection

      Supports parameter settings: person on duty, absence duration

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 1.02 A, max. 12.4 W, two-core terminal block

      24 VAC ± 20%, 0.49 A, max. 11.8 W, two-core terminal block

      PoE:IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W

    • MedžiagaAluminum alloy body
    • DydisØ140.5 mm × 122.6 mm (Ø5.5" × 4.8")
    • Pakuotės dydis244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
    • SvorisApprox. 875 g (1.93 lb.)
    • Svoris su įpakavimuApprox. 1415 g (3.11 lb.)
    • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Pagrindinės funkcijosHeartbeat, mirror, password protection, one-key reset
    • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
    • Patvirtinimai
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7,

      KC: KN32: 2015, KN35: 2015

    • Saugumas

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

      LOA: IEC/EN 60950-1

    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ApsaugaIK10: IEC 62262:2002
    • KitaPVC FREE
    • CCCommon Criteria, Assurance Level: EAL2 + ALC_FLR.2
