  •   Hikvision dome DS-2CD2H86G2-IZS(C) F2.8-12 (juoda, 8 MP, 30 m. IR, AcuSense)

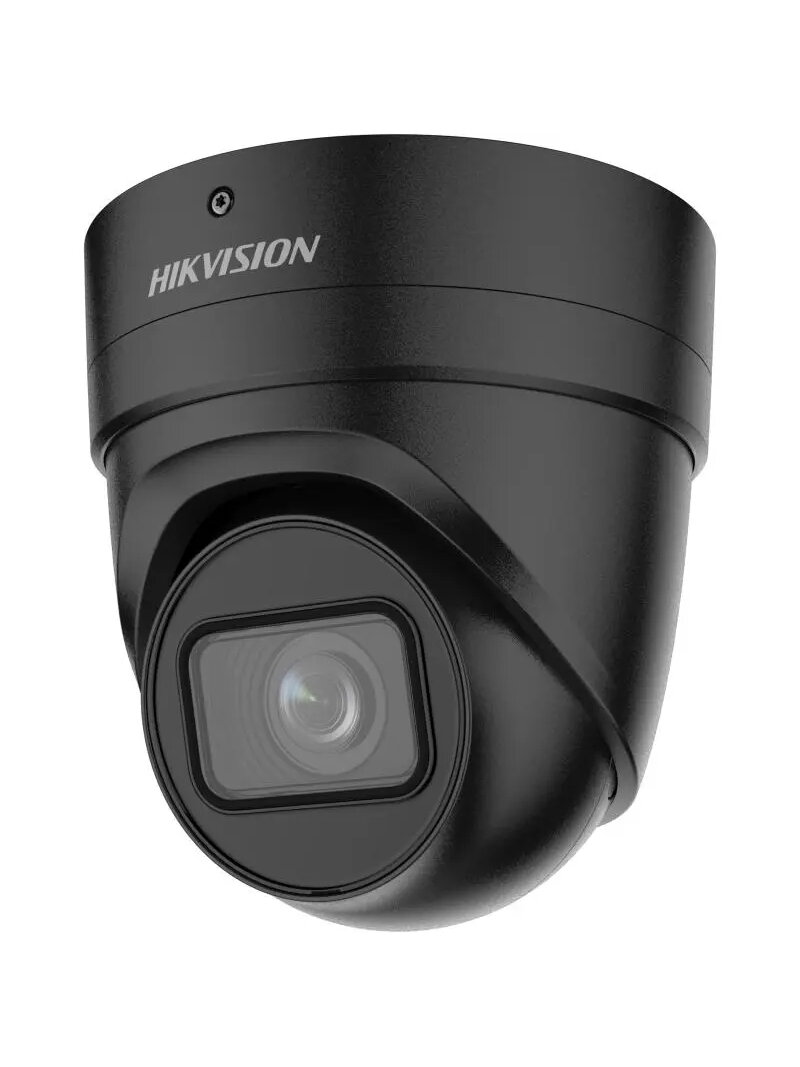

    Hikvision dome DS-2CD2H86G2-IZS(C) F2.8-12 (juoda, 8 MP, 30 m. IR, AcuSense)

    Kodas: KIPDS2CD2H86G2IZSCBL
    Barkodas: 6941264095194
    Pasiteirauti apie prekę
    298.08 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • MP (MegaPixel): 8 MP
    • Objektyvas: 2.8-12 mm varifokalinis
    • Technologija: AcuSense
    • Integruotas mikrofonas: Taip
    • Naktinis pašvietimas: 30 m. IR
    • Vieta microSD talpai: Taip, 512GB
    • Darbo sąlygos: -30 °C iki 60 °C
    • Saugos lygis: IP66
    • Vaizdo suspaudimas: H.265+
    • WiFi: Ne
    • Laikiklis/bazė (papildomai): DS-1473ZJ-135
    • Lauko/vidaus: Lauko
    Baterija
    Ne
    Forma
    Kupolinė
    Integruotas maitinimas (POE)
    Taip
    Lauko kamera
    Taip
    Naktinis pašvietimas
    iki 30 m
    Objektyvas
    Reguliuojamas kampas
    Prekės ženklas
    HIKVISION
    Priedas
    Ne
    Rezoliucija
    4K (8 MP)
    Ryšys
    LAN (Laidu)
    Spalva
    Juoda/Tamsiai pilka
  • Prekės aprašymas
    • Camera
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution3840 × 2160
    • Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
    • Lens
    • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
    • Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
    • Lens MountØ14
    • Iris TypeFixed
    • ApertureF1.4
    • DORI
    • DORI

      2.8 to 12 mm:

      Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m

      Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 40 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 24 fps (3840 × 2160)

      30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

      *Third stream is supported under certain settings.

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR/VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Target CroppingYes
    • Audio
    • Audio TypeMono sound
    • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Environment Noise FilteringYes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
    • Network Storage

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Image Parameters SwitchYes
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in micro SD slot, up to 512 GB
    • Audio

      1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

      1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Alarm 1 input, 1 output (max. 24 VAC/24 VDC, 500 mA)
    • Reset KeyYes
    • Event
    • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
    • Smart Event

      Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

      Scene change detection

    • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
    • Deep Learning Function
    • Face CaptureYes
    • General
    • Power

      12 VDC, 0.92 A, max. 11.04 W, two-core terminal block, reverse polarity protection

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

    • DimensionØ135.8 mm × 145.5 mm (Ø5.4" × 5.8")
    • Package Dimension170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1")
    • WeightApprox. 1160 g (2.5 lb.)
    • With Package WeightApprox. 1530 g (3.4 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language

      33 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

    • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
    • EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
    • ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
