  •   Hikvision bullet iDS-2CD7A46G0/P-IZHS (C) F2.8-12

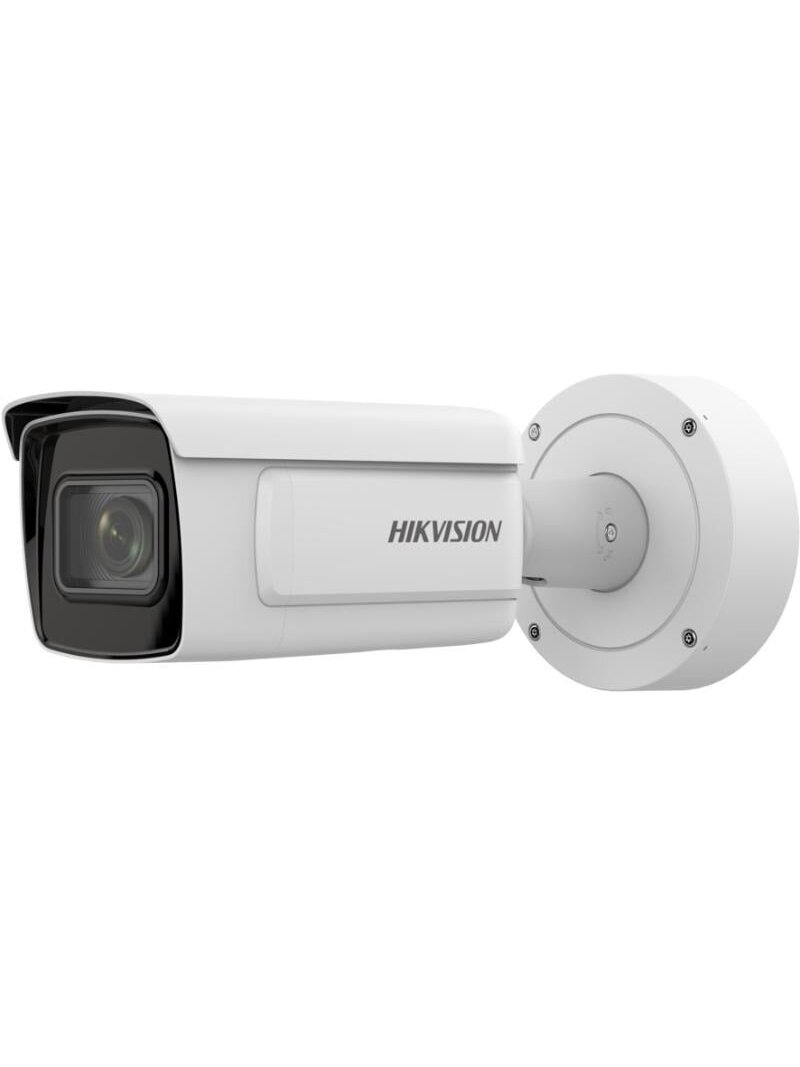

    Hikvision bullet iDS-2CD7A46G0/P-IZHS (C) F2.8-12

    Kodas: KIPIDS2CD7A46G0PIZHS
    Barkodas: 6931847132996
    Pasiteirauti apie prekę
    1297.71 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 4MP kamera
    • DarkFighter technologija
    • 140WDR
    • Numerių atpažinimas
    • H.265+ suspaudimo technologija
    • 5 srautai, tinkantys įvairioms programoms
    • IP67, IK10
    • Numerių atpažinimas (ANPR)
    Lauko kamera
    Taip
    Rezoliucija
    2K (4 MP)
    Forma
    Cilindrinė
    Naktinis pašvietimas
    iki 50 m
    Objektyvas
    Reguliuojamas kampas
    Prekės ženklas
    HIKVISION
    Spalva
    Balta
    Integruotas maitinimas (POE)
    Taip
    Baterija
    Ne
    Ryšys
    LAN (Laidu)
    Priedas
    Ne
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija2688 × 1520
    • Min. apšvietimas

      Color: 0.0005 Lux @ (F1.2, AGC ON);

      B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

    • Užrakto greitis1 s to 1/100,000 s
    • Day & Night

      IR cut filter

      Blue glass module to reduce ghost phenomenon

    • Lęšis
    • Focal Length & FOV

      2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

      8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

    • FokusavimasAuto,Semi-auto,Manual
    • Rainelės tipasP-iris
    • Diafragama

      2.8 to 12 mm: F1.2 to F2.5

      8 to 32 mm: F1.7 to F1.73

    • DORI
    • DORI

      Wide:

      2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

      8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

      Tele:

      2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

      8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonas

      2.8 to 12 mm: 50 m

      8 to 32 mm: 100 m

    • Išmanus papildomas apšvietimasYes
    • IR bangos ilgis850 nm
    • Vaizdas
    • Pagrindinis srautas

      50 Hz:

      25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

      50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz:

      30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

      60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Trečias srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Ketvirtas srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Penktasis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      Fourth stream: H.265/H.264/MJPEG,

      Fifth stream: H.265/H.264/MJPEG

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)4 fixed regions for each stream
    • Tikslinis apkarpymasYes
    • e-PTZSupport Patrol and Auto Tracking settings
    • Garsas
    • Garso tipasMono sound
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Pašalinių garsų šalinimasYes
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasiVMS-4200,Hik-Connect,Hik-Central
    • Naršyklė

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
    • Wide Dynamic Range (WDR)140 dB
    • SNR≥ 52 dB
    • Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • Vaizdo stabilizavimasEIS
    • Privatumo kaukė8 programmable polygon privacy masks
    • Sąsaja
    • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    • GarsasWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
    • Signalizacija2 inputs, 2 outputs (max. 24 VDC, 1 A)
    • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • GaliaWith -Y: 12 VDC, max. 100 mA
    • Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
    • Funkcijos
    • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
    • Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection
    • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
    • Išmaniosios funkcijos
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

      Support combined event alarm triggering

    • Kelių eismo ir transporto priemonių aptikimas

      Smart Function:

      Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

      Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.

      Support vehicle and non-vehicle counting

      Blocklist and allowlist: up to 10,000 records

      LPR Countries/Regions:

      4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions

      Accuracy (Under recommended installation and lighting conditions):

      License plate recognition rate ≥98%

      Capture rate ≥99%

      Driving direction accuracy rate ≥98%

      Vehicle Capture Speed:

      Front installation in checkpoint scenario: up to 120 km/h

      Side installation: up to 80 km/h

      Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

    • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
    • Parking Management

      Support distant view mode and close view mode

      Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm

      Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

      PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

    • MedžiagaAluminum alloy body
    • Dydis

      Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7\")

      With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"

    • Pakuotės dydis405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
    • SvorisApprox. 1950 g (4.2 lb.)
    • Svoris su įpakavimuApprox. 3070 g (6.7 lb.)
    • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
    • ŠildytuvasYes
    • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
    • Patvirtinimai
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7,

      KC: KN32: 2015, KN35: 2015

    • Saugumas

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

      LOA: IEC/EN 60950-1

    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
    • Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
    • AutomatikaEN50121-4
    • KitaPVC FREE
