  •   Hikvision bullet iDS-2CD7A46G0-IZHS(C) F2.8-12

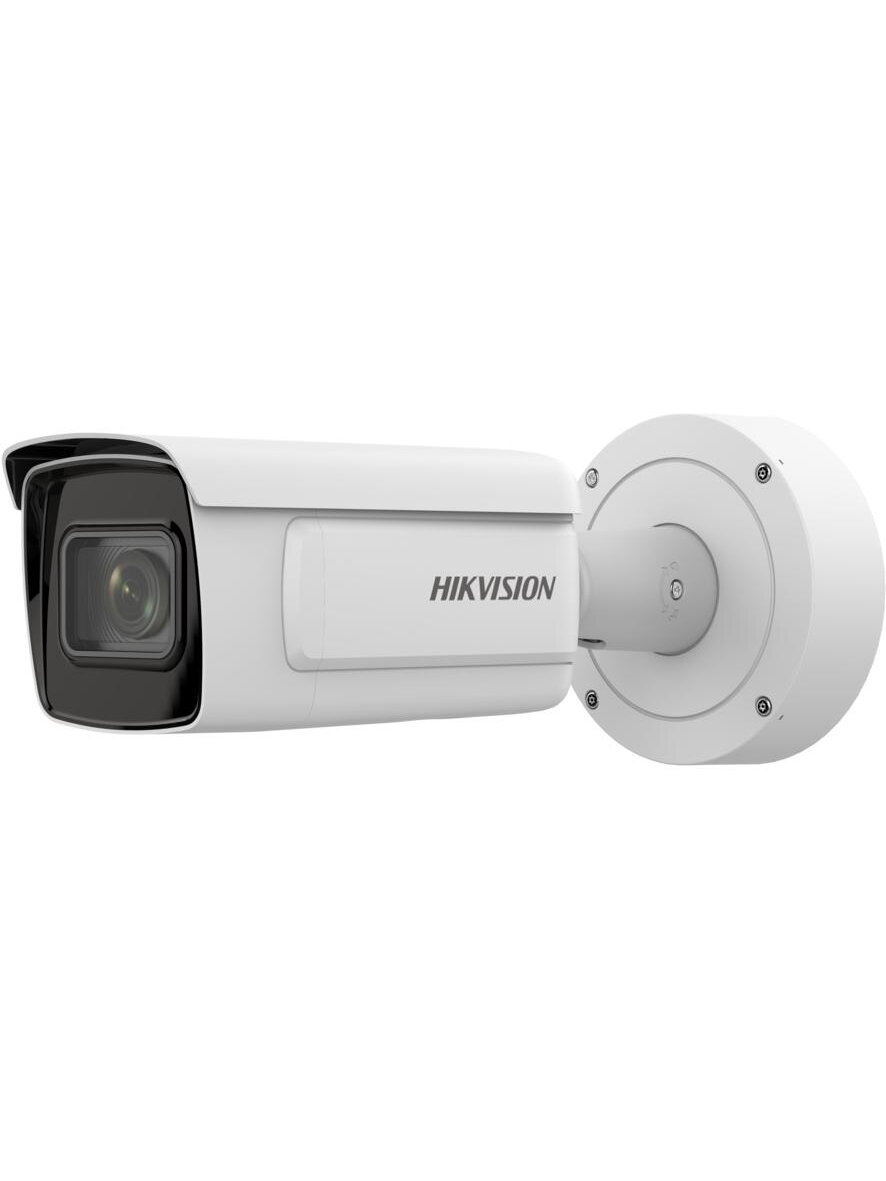

    Hikvision bullet iDS-2CD7A46G0-IZHS(C) F2.8-12

    Kodas: KIPIDS2CD7A46G0IZHSC
    Barkodas: 6931847130954
    Pasiteirauti apie prekę
    1074.94 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 10 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 4MP IP varifocal bullet camera
    • DarkFighter technologija
    • Objektyvas: 2.8 - 12mm
    • 140 dB WDR
    • 2 įspėjamojo signalo įvestys/išvestys
    • IR nuotolis iki 50 m
    • LED apšvietimas nuo 50 m iki 100 m
    • Vidinė talpykla 256 GB
    • IP67
    • IK10
    Lauko kamera
    Taip
    Rezoliucija
    2K (4 MP)
    Forma
    Cilindrinė
    Naktinis pašvietimas
    iki 50 m
    Objektyvas
    Reguliuojamas kampas
    Prekės ženklas
    HIKVISION
    Spalva
    Balta
    Integruotas maitinimas (POE)
    Taip
    Baterija
    Ne
    Ryšys
    LAN (Laidu)
    Priedas
    Ne
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija2560 × 1440
    • Min. apšvietimasColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Užrakto greitis1 s to 1/100,000 s
    • Diena & Naktis

      IR cut filter

      Blue glass module to reduce ghost phenomenon

    • Lęšis
    • FOV

      2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

      8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

    • FokusavimasAuto, semi-auto, manual
    • Rainelės tipasP-iris
    • Diafragama

      2.8 to 12 mm: F1.2 to F2.5

      8 to 32 mm: F1.7 to F1.73

    • DORI
    • DORI

      Wide:

      2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m

      8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

      Tele:

      2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

      8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonas

      2.8 to 12 mm: 50 m

      8 to 32 mm: 100 m

    • Išmanus papildomas apšvietimasYes
    • IR bangos ilgis850 nm
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720)

      60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)

    • Antrinis srautas

      50 Hz: 25 fps (704 × 480, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Trečias srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Ketvirtas srautas

      50 Hz: 25 fps (704 × 480, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Penktasis srautas

      50 Hz: 25 fps (704 × 480, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Vaizdo suspaudimasH.265+/H.265/H.264+/H.264/MJPEG
    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile/Main Profile/High Profile
    • H.265 tipasBaseline Profile/Main Profile/High Profile
    • Bitų greičio kontrolėCBR/VBR
    • SVCH.264 and H.265 encoding
    • ROI4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
    • Tikslinis apkarpymasYes
    • Garsas
    • Garso tipasMono sound
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
    • Pašalinių garsų šalinimasYes
    • Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasiVMS-4200, Hik-Connect
    • Naršyklė

      Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

      Plug-in free live view: Chrome 45.0+, Firefox 52.0+

      Not recommended: Safari 11+, Edge

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
    • Diena/Naktis režimasDay, Night, Auto, Schedule, Alarm Trigger
    • WDR140 dB
    • Nuotraukų pagražinimasBLC, HLC, Defog, 3D DNR
    • SNR≥ 52 dB
    • Privatumo kaukė8 programmable polygon privacy masks, mask color or mosaic configurable
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • Vaizdo stabilizavimasEIS
    • Sąsaja
    • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
    • GarsasWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
    • Signalizacija2 input, 2 outputs (max. 24 VDC, 1 A)
    • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • GaliaWith -Y: 12 VDC, max. 100 mA
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
    • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
    • Išmaniosios funkcijos
    • Kelių taikinių sekimas

      Supports simultaneous detection and capture of human body, face and vehicle

      Gets 7 face features, 13 human body features and 2 vehicle features

    • Veido atpažinimas

      1. Detects up to 60 faces simultaneously

      2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°

      3. Uploads face with background and closed-up face pictures

    • Veidų sulyginimas

      Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.

      Supports face library encryption

    • Perimetro apsauga

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block

      PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, max. 16.8 W

    • Dydis

      Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)

      With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)

    • Pakuotės dydis405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
    • Approx. 1950 g (4.2 lb.)
    • Svoris su įpakavimuApprox. 3070 g (6.7 lb.)
    • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
    • Patvirtinimai
    • EMC

      FCC (47 CFR Part 15, Subpart B);

      CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

      RCM (AS/NZS CISPR 32: 2015);

      IC (ICES-003: Issue 7);

      KC (KN 32: 2015, KN 35: 2015)

    • Saugumas

      UL (UL 62368-1);

      CB (IEC 62368-1:2014+A11);

      CE-LVD (EN 62368-1:2014/A11:2017);

      BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

      LOA (IEC/EN 60950-1)

    • Aplinkosauga

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)

    • ApsaugaIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
    • Apsauga nuo korozijosWith -Y: NEMA 4X(NEMA 250-2018)
    • AutomatikaEN50121-4
    • KitaPVC FREE
