  •   Hikvision bullet iDS-2CD7A26G0/P-IZHS(C) F8-32

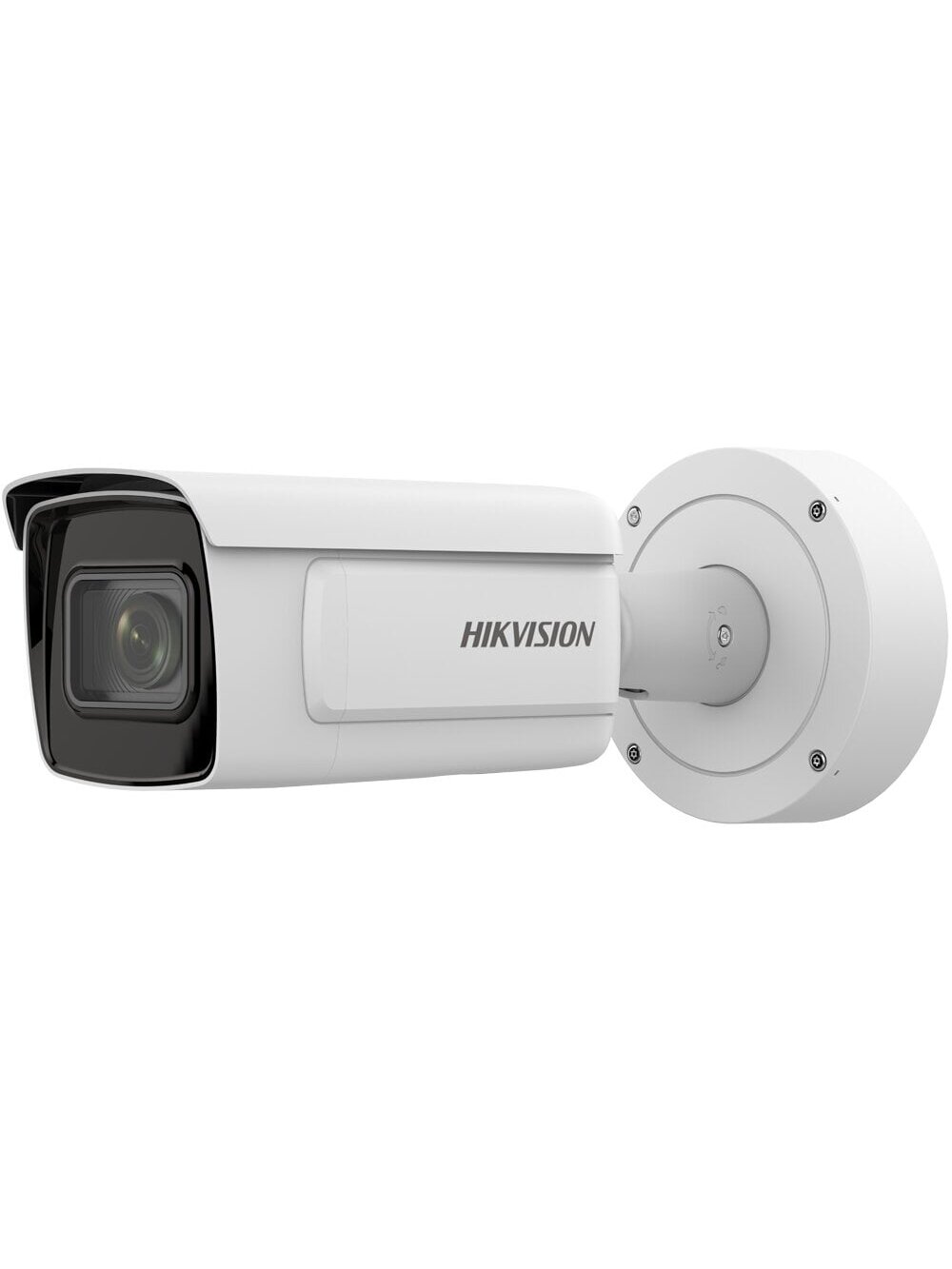

    Hikvision bullet iDS-2CD7A26G0/P-IZHS(C) F8-32

    Kodas: KIP2CD7A26G0PIZHSCF8
    Barkodas: 6931847132989
    Pasiteirauti apie prekę
    1370.97 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 2MP ANPR Bullet kamera
    • Motorizuotas objektyvas 8-32mm
    • DeepinView technologija
    • Darkfighter technologija
    • IR iki 100m
    • Vieta micro SD kortelei iki 256GB
    • IP67, IK10
    • Numerių atpažinimas (ANPR)
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija1920 × 1080
    • Min. apšvietimas

      Color: 0.0005 Lux @ (F1.2, AGC ON);

      B/W: 0.0001 Lux @ (F1.2, AGC ON)，0 Lux with IR

    • Užrakto greitis1 s to 1/100,000 s
    • Diena & Naktis

      IR cut filter

      Blue glass module to reduce ghost phenomenon

    • Lęšis
    • FOV

      2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

      8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

    • FokusavimasAuto, semi-auto, manual
    • Rainelės tipasP-iris
    • Diafragama

      2.8 to 12 mm: F1.2 to F2.5

      8 to 32 mm: F1.7 to F1.73

    • DORI
    • DORI

      Wide:

      2.8 to 12 mm: D: 45 m, O: 17.9 m, R: 9 m, I: 4.5 m

      8 to 32 mm: D: 112.7 m, O: 44.8 m, R: 22.6 m, I: 11.3 m

      Tele:

      2.8 to 12 mm: D: 111.8 m, O: 44.3 m, R: 22.4 m, I: 11.2 m

      8 to 32 mm: D: 300 m, O: 119.0 m, R: 60 m, I: 30 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonas

      2.8 to 12 mm: 50 m

      8 to 32 mm: 100 m

    • Išmanus papildomas apšvietimasYes
    • IR bangos ilgis850 nm
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Trečias srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Ketvirtas srautas

      50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Penktasis srautas

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile/Main Profile/High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR/VBR
    • SVCH.265 and H.264 encoding
    • ROI4 fixed regions for each stream
    • Tikslinis apkarpymasYes
    • Garsas
    • Garso tipasMono sound
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
    • Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
    • Pašalinių garsų šalinimasYes
    • Tinklas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported

    • KlientasiVMS-4200, Hik-Connect, Hik-Central
    • Naršyklė

      Plug-in required live view: IE8+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

      Local service: Chrome 41.0+, Firefox 30.0+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Diena/Naktis režimasDay, Night, Auto, Schedule, Alarm Trigger, Video Trigger
    • WDR140 dB
    • SNR≥ 52 dB
    • Nuotraukų pagražinimasBLC, HLC, Defog, 3D DNR
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • Vaizdo stabilizavimasEIS
    • Sąsaja
    • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
    • GarsasWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
    • Signalizacija2 input, 2 outputs (max. 24 VDC, 1 A)
    • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Perkrovimo mygtukasYes
    • GaliaWith -Y: 12 VDC, max. 100 mA
    • Wiegand/P-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
    • Išmaniosios funkcijos

      Intrusion detection, scene change detection, audio exception detection, defocus detection

      Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable

      Region entrance detection, up to 4 regions configurable

      Region exiting detection, up to 4 regions configurable

    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
    • Išmaniosios funkcijos
    • Perimetro apsauga

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types

    • Kelių eismo ir transporto priemonių aptikimas

      Blocklist and allowlist: up to 10,000 records

      Captures vehicle that has no license plate

      Support license plate recognition of motorcycles (only in checkpoint scenario)

      Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

    • Meta duomenysMetadata of road traffic is supported.
    • Pagrindinis
    • Maitinimas

      12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block

      PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

    • Dydis

      Without -Y: Ø144 × 347 mm (Ø5.7" × 13.7\")

      With -Y: Ø140 × 351 mm (Ø5.5 × 13.8\")"

    • Įpakavimo dydis405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
    • Approx. 1950 g (4.2 lb.)
    • Svoris su įpakavimuApprox. 3070 g (6.7 lb.)
    • Sandėliavimo operacija-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
    • Pagrindinės funkcijosAnti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
    • ŠildytuvasYes
    • Patvirtinimai
    • EMC

      FCC (47 CFR Part 15, Subpart B);

      CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

      RCM (AS/NZS CISPR 32: 2015);

      IC (ICES-003: Issue 7);

      KC (KN 32: 2015, KN 35: 2015)

    • Saugumas

      UL (UL 62368-1);

      CB (IEC 62368-1:2014+A11);

      CE-LVD (EN 62368-1:2014/A11:2017);

      BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

      LOA (IEC/EN 60950-1)

    • Aplinkosauga

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)

    • ApsaugaIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
    • Apsauga nuo korozijosWith -Y: NEMA 4X(NEMA 250-2018)
    • AutomatikaEN50121-4
    • KitaPVC FREE
