  •   Hikvision bullet iDS-2CD7A26G0/P-IZHS F2.8-12

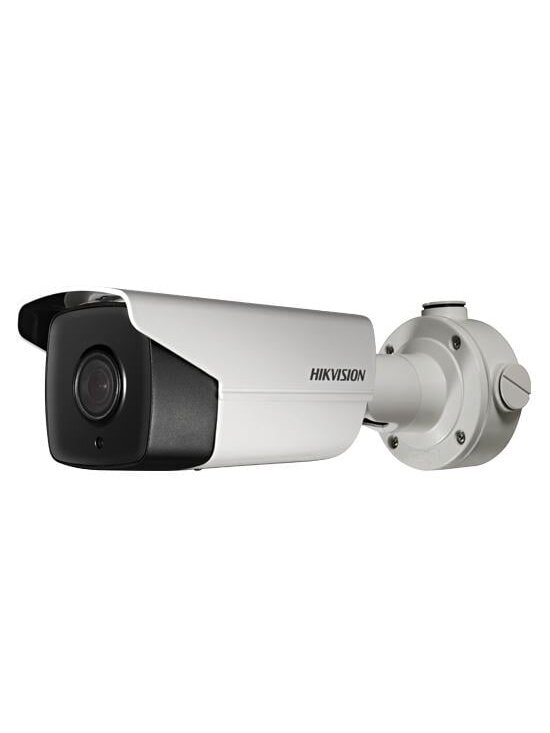

    Hikvision bullet iDS-2CD7A26G0/P-IZHS F2.8-12

    Kodas: KIP2CD7A26G0PIZHSF2.8
    Barkodas: 6931847133009
    Pasiteirauti apie prekę
    1370.97 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 2MP ANPR Bullet kamera
    • Motorizuotas objektyvas 2.8-12mm(~92°-32°)
    • DeepinView technologija
    • Darkfighter technologija
    • IR iki 30m
    • Vieta micro SD kortelei iki 256GB
    • IP67
    • Numerių atpažinimas (ANPR)
  • Prekės aprašymas
    Sensorius 1/1.8″ Progressive Scan CMOS
    Min. apšvietimas Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
    Užrakto greitis  1 s to 1/100,000 s
    Lėtas užraktas Yes
    P/N P/N
    WDR 140 dB
    Diena / Naktis IR cut filter
    Išjungimo atmintis Yes
    Fokusavimas Auto, semi-auto, manual.
    Objektyvo tipas 2.8 to 12 mm, horizontal FOV: 107.3° to 39.8°, vertical FOV: 55.9° to 22.3°, diagonal FOV: 130.1° to 45.7° 8 to 32 mm, horizontal FOV: 40.3° to 14.4°, vertical FOV: 22.1° to 8.2° diagonal FOV: 46.9° to 16.5°
    Diafragma 2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73
    Montavimas Integrated
    Mėlyno stiklo modulis Blue glass module to reduce ghost phenomenon.
    P-Iris Yes
    IR atstumas 2.8 to 12 mm: 30 m 8 to 32 mm: 80 m
    Bangos ilgis 850 nm
    Išmani papildoma šviesa Yes
    Mak. raiška 1920 × 1080
    Pagrindinis srautas 50Hz: 50fps (1920 × 1080, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 720)
    Antrinis srautas 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
    Tretinis srautas 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    Ketvirtasis srautas 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    Penktasis srautas 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
    Pasirinktas srautas 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    Vaizdo suspaudimas Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream: H.265/H.264/MJPEG
    Vaizdo bitų greitis 32 Kbps to 16 Mbps
    H.264 tipas Baseline Profile/Main Profile/High Profile
    H.265 tipas Main Profile
    H.264+ Main Stream supports
    H.265+ Main Stream supports
    Bitų greičio valdymas CBR/VBR
    Srauto tipas Main stream/sub-stream/third stream/fourth stream/fifth stream/custom stream
    SVC H.265 and H.264 support
    ROI 4 fixed regions for each stream
    Aplinkos triukšmo filtravimas Yes
    Garso ėminių dažnis 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3
    Garso bitų greitis 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
    Garso tipas Mono sound
    Transliavimas Up to 20 channels
    API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
    Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    Sklandus transliavimas Yes
    User/Host Up to 32 users. 3 user levels: administrator, operator and user
    Apsauga Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
    Tinklo saugykla microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    Kliento programinė įranga iVMS-4200, Hik-Connect, Hik-Central
    Naršyklė Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
    Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
    Diena/naktis jungiklis Day, Night, Auto, Schedule, Triggered by Alarm In, Triggered by Video
    Taikinio išskyrimas Yes
    Iškraipymų korekcija Yes
    Vaizdų persidengimas LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    Vaizdo gerinimas BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
    Vaizdo parametrų valdymas Yes
    Vaizdo nustatymai Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    SNR ≥52 dB
    Pavojaus signalas 2 input, 2 outputs (max. 24 VDC, 1 A)
    Garsas With -Y: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
    RS-485 With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    Vaizdo išvestis 1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
    Vidinė atmintis Built-in micro SD/SDHC/SDXC slot, up to 256 GB
    Perkrovimo mygtukas Yes
    Ryšio sąsaja 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
    Galios išvestis With -Y: 12 VDC, max. 200 mA (supported by all power supply types)
    Šildytuvas Yes
    Pagrindinis įvykis Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), black/white list of license plate
    Išmanus įvykis Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
    Skaičiavimas Yes
    Papildoma apsauga Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
    Eismo ir transporto aptikimas Blacklist and whitelist: up to 10000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
    Susiejimo metodas Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
    Atsinaujinimas Yes
    Dvigubas atsinaujinimas Yes
    Programinės įrangos versija V5.5.121
    Kalbos 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    Pagrindinė funkcija Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
    Programinis perkrovimas Yes
    Saugyklos sąlygos -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    Paleidimo ir darbo sąlygos -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    Tiekimas 12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE: 802.3at, Type 2 Class 4
    Suvartojimas 12 VDC, 1.33 A, max. 16.0 W PoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A, max. 18.0 W
    Galios sąsaja Three-core terminal block
    Medžiaga Aluminum alloy body
    Varžtų medžiaga Mild steel
    Kameros matmenys Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
    Pakuotės matmenys 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
    Kameros svoris 1920 g (4.2 lb.)
    Svoris su pakuote 3060 g (6.7 lb.)
    Metadata Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal are supported.
    Klasė Class B
    EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    Saugumas UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    Aplinka CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Apsauga Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
    R8dyjimo apsauga With -Y: NEMA 4X(NEMA 250-2014)
    Kiti With -Y: PVC FREE
