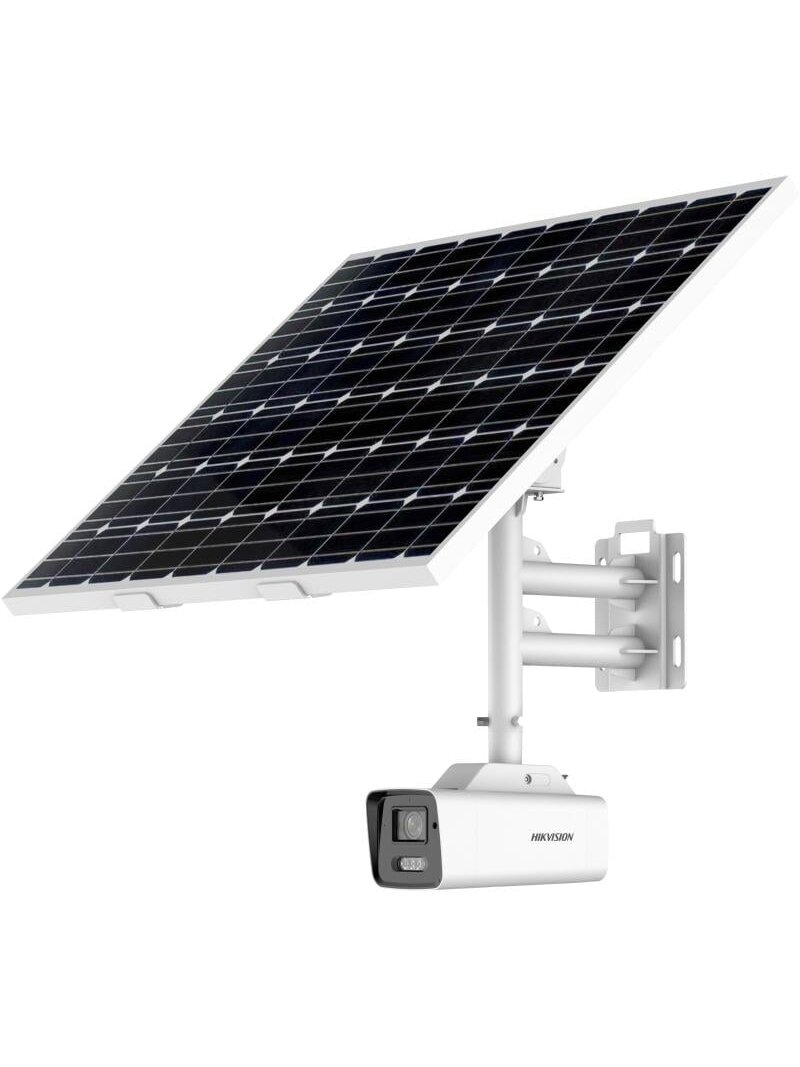

  •   Hikvision bullet DS-2XS6A87G1-LS/C36S80 (su saulės panele, be baterijos,4G)

    Hikvision bullet DS-2XS6A87G1-LS/C36S80 (su saulės panele, be baterijos,4G)

    Kodas: KIP6A87G1LSC36S80F28
    Barkodas: 6931847177133
    Pasiteirauti apie prekę
    3431.08 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 8 MP kamera
    • Be baterijos
    • 120dB WDR
    • 80 W fotovoltinė plokštė, 30 Ah įkraunama ličio baterija
    • LLTE-TDD / LTE-FDD / WCDMA / GSM 4G belaidžio tinklo perdavimas, palaiko mikro SIM kortelę
    • IP67
    • 64 GB eMMC vidinė atimintis
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.2" Progressive Scan CMOS
    • Maks. rezoliucija3840 × 2160
    • Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
    • Užrakto greitis1 s to 1/100,000 s
    • Lęšis
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°

      4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°

    • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
    • Rainelės tipasFixed
    • DiafragamaF1.0
    • Lęšio montavimasM20
    • DORI
    • DORI

      2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m

      4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

    • Apšvietimas
    • Papildomo apšviešimo tipasWhite Light
    • Papildomo apšvietimo diapazonasUp to 30 m
    • Išmanus papildomas apšvietimasYes
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 12.5 fps (640 × 480, 640 × 360)

      60 Hz: 15 fps (640 × 480, 640 × 360)

    • Vaizdo suspaudimas

      Main stream: H.265

      Sub-stream: H.265/MJPEG

      *Full power mode: main stream supports H.265+

    • Vaizdo bitų greitis32 Kbps to 16 Mbps
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR/VBR
    • Scalable Video Coding (SVC)H.265 encoding
    • Region of Interest (ROI)4 fixed regions for main stream
    • Internetas
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasHik-Connect (low power mode also supports), Hik-central Professional
    • Naršyklė

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Mobile Communication
    • SIM Card TypeMicroSIM
    • Dažnis

      DS-2XS6A87G1-L/C32S80:

      LTE-TDD: Band38/40/41

      LTE-FDD: Band1/3/5/7/8/20/28

      WCDMA: Band1/5/8

      GSM: Band3/5/8

      DS-2XS6A87G1-L/C32S80 (US):

      LTE-FDD: Band2/4/5/12/13/17/66/71

      WCDMA: Band2/4/5

      DS-2XS6A87G1-L/C32S80 (LA):

      LTE-TDD: Band38/40

      LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66

      WCDMA: Band1/2/3/4/5/8

      GSM: Band2/3/5/8

      DS-2XS6A87G1-L/C32S80 (JP):

      LTE-TDD: Band41

      LTE-FDD: Band1/3/8/11/18/19/21/26/28

      WCDMA: Band1/8

    • Standartas

      DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM

      DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA

      DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

      DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

    • Nuotrauka
    • Wide Dynamic Range (WDR)120 dB
    • Diena/Naktis režimasDay, Night, Auto, Schedule
    • Nuotraukų pagražinimasBLC, HLC, 3D DNR
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • SNR≥ 52 dB
    • Privatumo kaukė4 programmable polygon privacy masks
    • Sąsaja
    • RS-4851 RS-485 (half duplex)
    • Vidinė atmintis

      Built-in memory card slot, support microSD card, up to 256 GB;

      Built-in 64 GB eMMC storage

    • Perkrovimo mygtukasYes
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Išmaniosios funkcijos

      Line crossing detection, up to 4 regions configurable

      Intrusion detection, up to 4 regions configurable

      Region entrance detection, up to 4 regions configurable

      Region exiting detection, up to 4 regions configurable

      Unattended baggage detection, up to 4 regions configurable

      Object removal detection, up to 4 regions configurable,

      The smart events are only supported under full power mode.

    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, Ø5.5 mm coaxial power plug

      1. Standby power consumption: 53 mW

      2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).

      3. The max. power consumption: 3.2 W

    • MedžiagaFront cover: metal, body: metal, bracket: metal
    • Dydis829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is completely assembled)
    • Pakuotės dydis862 × 292 × 765 mm (33.9" × 11.5" × 30.1")
    • SvorisApprox. 25.4 kg (56.0 lb.)
    • Svoris su įpakavimuApprox. 30.1 kg (66.3 lb.)
    • Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
    • Patvirtinimai
    • EMC

      CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);

      RCM (AS/NZS CISPR 32: 2015);

      FCC (47 CFR Part 15, Subpart B);

      IC (ICES-003: Issue 7)

    • RF

      CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

      ICASA: same as CE-RED

      FCC ID (47 CFR Part15 Subpart C);

      IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

      MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

    • Saugumas

      CB (IEC 62368-1:2014+A11)

      CE-LVD (EN 62368-1:2014/A11:2017)

      LOA (IEC/EN 60950-1)

    • Aplinkosauga

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)

    • Apsauga

      Camera: IP67 (IEC 60529-2013)

      Wind resistance 12 level, up to 40 m/s wind speed resistance
