  •   Hikvision bullet DS-2XS6A47G1-LS/C36S80 (su saulės panele, 4G)

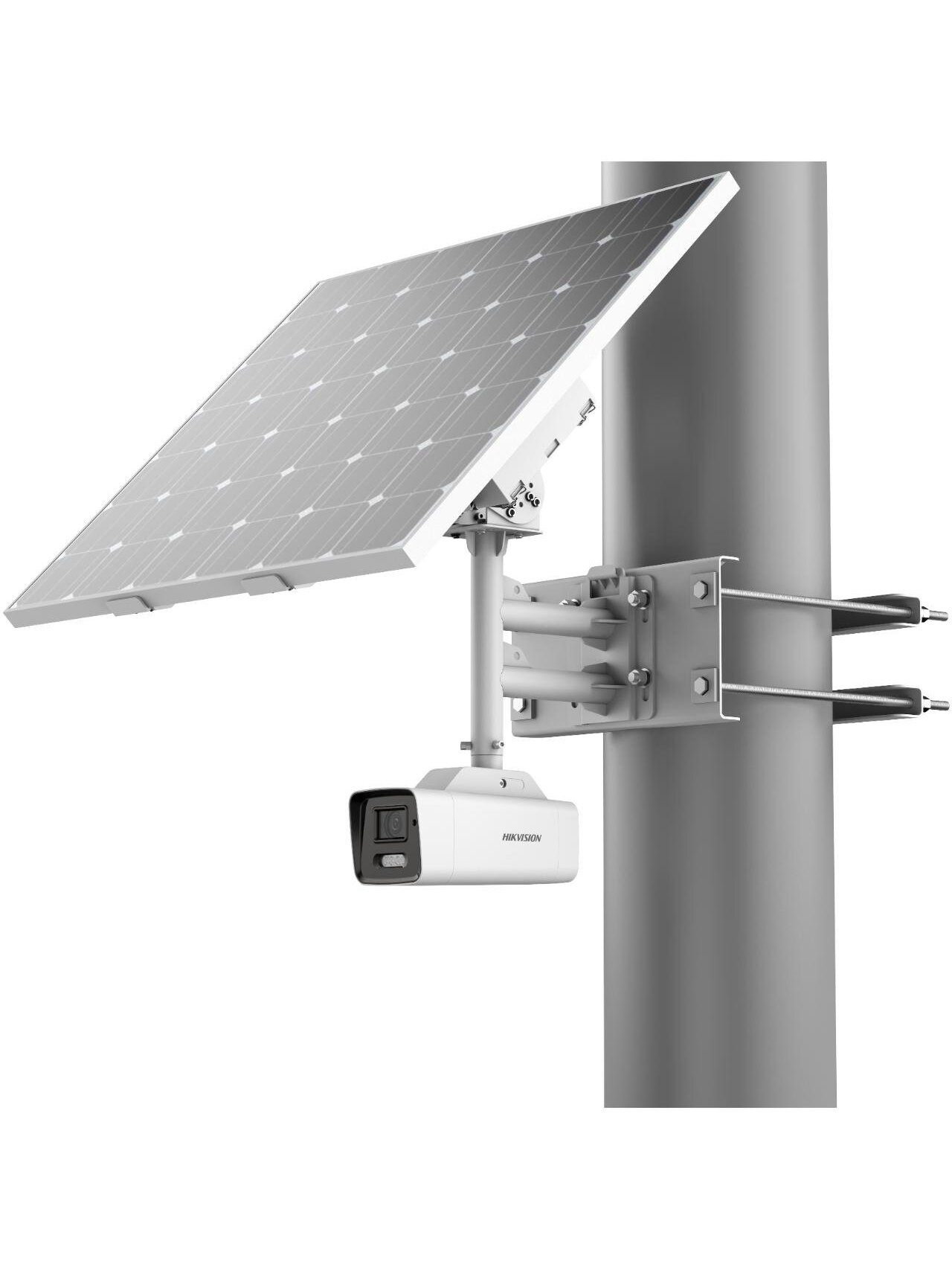

    Hikvision bullet DS-2XS6A47G1-LS/C36S80 (su saulės panele, 4G)

    Kodas: KIP2XS6A47G1LSC36S80
    Barkodas: 6931847177058
    Pasiteirauti apie prekę
    2684.49 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 2560 × 1440@ 15 fps rezoliucija
    • 24/7 ColorfuVu
    • 130dB WDR
    • Žmonių ir mašinų atpažinimas ir klasifikacija
    • 80 W fotovoltinė plokštė, 360 W įkraunama ličio baterija
    • LLTE-TDD / LTE-FDD / WCDMA / GSM 4G belaidžio tinklo perdavimas, palaiko mikro SIM kortelę
    • IP67
    • 64 GB eMMC vidinė atimintis
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija2560 × 1440
    • Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
    • Užrakto greitis1 s to 1/100,000 s
    • Lęšis
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°

      4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°

    • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
    • Rainelės tipasFixed
    • DiafragamaF1.0
    • Lęšio montavimasM16
    • DORI
    • DORI

      2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m

      4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m

    • Apšvietimas
    • Papildomo apšviešimo tipasWhite Light
    • Papildomo apšvietimo diapazonasUp to 30 m
    • Išmanus papildomas apšvietimasYes
    • Vaizdas
    • Pagrindinis srautas

      50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 12.5 fps (640 × 480, 640 × 360)

      60 Hz: 15 fps (640 × 480, 640 × 360)

    • Trečias srautas

      50 Hz: 1 fps (1280 × 720, 640 × 480)

      60 Hz: 1 fps (1280 × 720, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.264/H.265

      Sub-stream: H.264/H.265/MJPEG

      Third Stream: H.265/H.264

      *Performance mode: main stream supports H.264+, H.265+

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR/VBR
    • SVCH.264 and H.265 encoding
    • ROI4 fixed regions for main stream
    • Garsas
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Pašalinių garsų šalinimasYes
    • Internetas
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasHik-Connect (proactive mode also supports), Hik-central Professional
    • Naršyklė

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Mobilusis ryšys
    • SIM kortelės tipasMicroSIM
    • Dažnis

      DS-2XS6A47G1-LS/C32S80:

      LTE-TDD: Band38/40/41

      LTE-FDD: Band1/3/5/7/8/20/28

      WCDMA: Band1/5/8

      GSM: 850/900/1800MHz

      DS-2XS6A47G1-LS/C32S80 (US):

      LTE-FDD: Band2/4/5/12/13/66/71

      WCDMA: Band2/4/5

      DS-2XS6A47G1-LS/C32S80 (LA):

      LTE-TDD: Band38/40

      LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66

      WCDMA: Band1/2/3/4/5/8

      GSM: 850/900/1800/1900MHz

      DS-2XS6A47G1-LS/C32S80 (JP):

      LTE-TDD: Band41

      LTE-FDD: Band1/3/8/11/18/19/21/26/28

      WCDMA: Band1/6/8/19

    • Standartas

      DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM

      DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA

      DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

      DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

    • Nuotrauka
    • WDR130 dB
    • Diena/Naktis režimasDay, Night, Auto, Schedule
    • Nuotraukų pagražinimasBLC, HLC, 3D DNR, Defog
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • SNR≥ 52 dB
    • Privatumo kaukė4 programmable polygon privacy masks
    • Sąsaja
    • RS-4851 RS-485 (half duplex, connect to external battery)
    • Garsas

      1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Signalizacija1 input(s), 1 output(s) (max. 12 VDC, 1 A)
    • Vidinė atmintis

      Built-in memory card slot, support microSD card, up to 256 GB;

      Built-in 64 GB eMMC storage

    • Perkrovimo mygtukasYes
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Galia12 VDC, max. 1000 mA
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
    • Išmaniosios funkcijos

      Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection

      *Smart events are only supported under performance mode.

    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 4-pin M8 waterproof connector

      1. Standby power consumption: 53 mW

      2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).

      3. The max. power consumption: 3.2 W

    • MedžiagaFront cover: metal, body: metal, bracket: metal
    • Dydis882.6 mm × 706.3 mm × 760 mm (34.8" × 27.8" × 29.9") (Max. size of the camera after it is completely assembled)
    • Pakuotės dydis862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
    • SvorisApprox. 30.2 kg (66.5 lb.)
    • Svoris su įpakavimuApprox. 36.3 kg (80.0 lb.)
    • Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
    • Baterija
    • Baterijos tipasLithium
    • Talpa360 WH (90 WH for each battery)
    • Baterijos įtampa10.8 V
    • Maks. Išėjimo įtampa12.6 V
    • Darbo sąlygos drėgmė

      Charging: -20 °C to 45 °C (-4 °F to 113 °F)

      Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

    • Baterijos veikimo laikasMore than 500 cycles
    • Ciklo tarnavimo laikas

      Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days

      *in cloudy/rainy days (25 °C)

    • Baterijos svorisApprox. 3.3 kg (7.3 lb.)
    • Dydis221 mm × 84 mm × 37.3 mm (8.7" × 3.3" × 1.5")
    • Patvirtinimai
    • EMC

      CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);

      RCM (AS/NZS CISPR 32: 2015);

      FCC (47 CFR Part 15, Subpart B);

      IC (ICES-003: Issue 7)

    • RF

      CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

      ICASA: same as CE-RED

      FCC ID (47 CFR Part15 Subpart C);

      IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

      MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

    • Saugumas

      CB (IEC 62368-1:2014+A11)

      CE-LVD (EN 62368-1:2014/A11:2017)

      LOA (IEC/EN 60950-1)

    • Aplinkosauga

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)

    • Apsauga

      Camera: IP67 (IEC 60529-2013)

      Wind resistance 12 level, up to 40 m/s wind speed resistance
