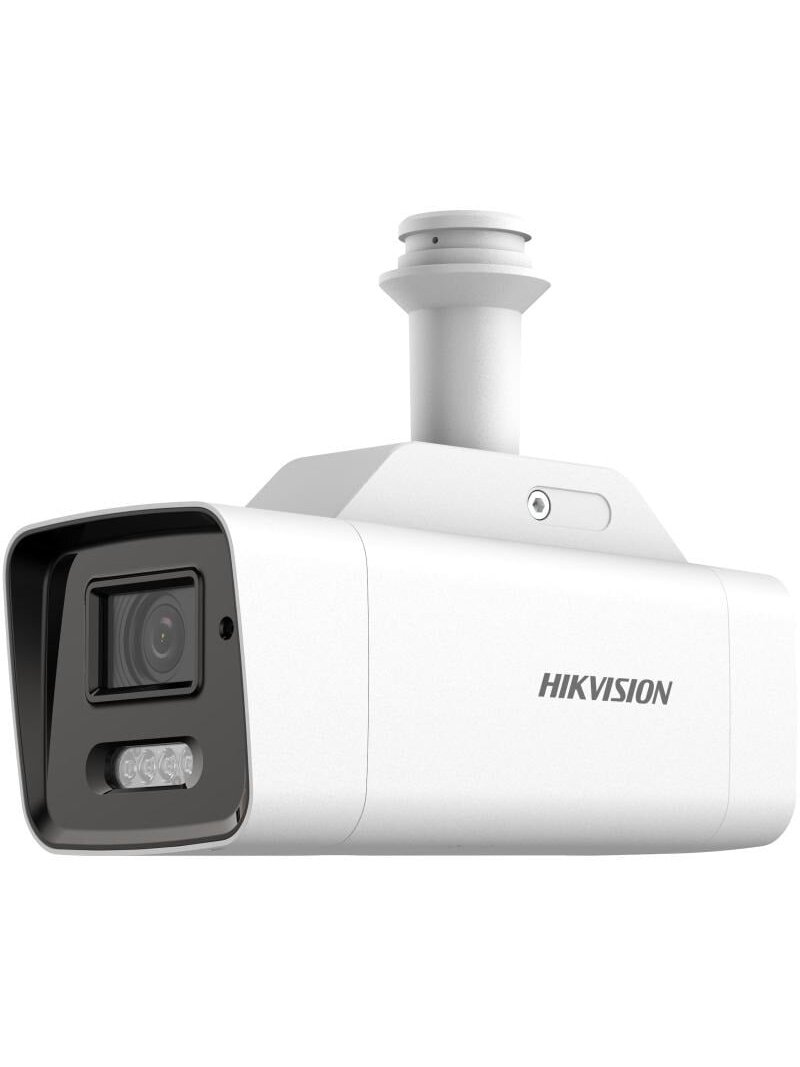

  •   Hikvision bullet DS-2XS6A46G1-IZS/4G (balta, 4MP, IR iki 30m., IP66)

    Hikvision bullet DS-2XS6A46G1-IZS/4G (balta, 4MP, IR iki 30m., IP66)

    Kodas: KIP2XS6A46G1IZS4G
    Barkodas: 6942160458441
    Pasiteirauti apie prekę
    681.90 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Kameros objektyvas: 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°
    • Motorizuotas varifokalinis objektyvas
    • Aiškus vaizdas prieš stiprią foninę šviesą dėl 120 dB tikrosios WDR technologijos
    • Sutelkite dėmesį į žmonių ir transporto priemonių taikinių klasifikavimą, pagrįstą giliu mokymusi
    • LTE-TDD / LTE-FDD / WCDMA / GSM 4G belaidžio tinklo perdavimas, palaikykite mikro SIM kortelę
    • Atsparus vandeniui ir dulkėms (IP66)
    • Integruota didelės talpos eMMC saugykla
  • Prekės aprašymas
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija2560 × 1440
    • Min. apšvietimasColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
    • Užrakto greitis1 s to 1/100,000 s
    • Lęšis
    • Focal Length & FOV

      2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°

      8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°

    • Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
    • FokusavimasAuto,Semi-auto,Manual
    • Rainelės tipasAuto-iris
    • Diafragama2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
    • Lęšio montavimasAll In One Lens
    • DORI
    • DORI

      2.8 to 12 mm:

      Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

      Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

      8 to 32 mm:

      Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m

      Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonas

      2.8 to 12 mm: Up to 30 m

      8 to 32 mm: Up to 50 m

    • Išmanus papildomas apšvietimasYes
    • Vaizdas
    • Pagrindinis srautas

      Performance mode:

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      Proactive mode:

      50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      Performance mode:

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

      Proactive mode:

      50 Hz: 12.5 fps (640 × 480, 640 × 360)

      60 Hz: 15 fps (640 × 480, 640 × 360)

    • Trečias srautas

      50 Hz: 1 fps (1280 × 720, 640 × 480)

      60 Hz: 1 fps (1280 × 720, 640 × 480)

    • Vaizdo suspaudimas

      Main stream: H.264/H.265

      Sub-stream: H.264/H.265/MJPEG

      Third Stream: H.265/H.264

      *Performance mode: main stream supports H.264+, H.265+

    • Vaizdo bitų greitis32 Kbps to 8 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR/VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)4 fixed regions for main stream
    • Garsas
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Pašalinių garsų šalinimasYes
    • Internetas
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
    • Vidinė atmintis

      NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasHik-Connect (proactive mode also supports), Hik-central Professional
    • Naršyklė

      Plug-in required live view: IE 10+

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Mobile Communication
    • SIM Card TypeMicroSIM
    • Dažnis

      LTE-TDD: Band38/40/41

      LTE-FDD: Band1/3/5/7/8/20/28

      WCDMA: Band1/5/8

      GSM: 850/900/1800 MHz

    • StandartasLTE-TDD/LTE-FDD/WCDMA/GSM
    • Nuotrauka
    • Wide Dynamic Range (WDR)120 dB
    • Diena/Naktis režimasDay,Night,Auto,Schedule
    • Nuotraukų pagražinimasBLC, HLC, 3D DNR, Defog
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
    • SNR≥ 52 dB
    • Privatumo kaukė4 programmable polygon privacy masks
    • Sąsaja
    • Garsas

      1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Signalizacija1 input, 1 output (max. 12 VDC, 1 A)
    • Vidinė atmintis

      Built-in memory card slot, support microSD card, up to 256 GB,

      Built-in 256 GB eMMC storage (256 GB device model supports)

    • Perkrovimo mygtukasYes
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Galia12 VDC, max. 1000 mA
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
    • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
    • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 20%, 4-pin M8 waterproof connector

      1. Standby power consumption: 45 mW

      2. The average power consumption of 24 hours (4G transmission is excluded): 3 W

      3. The max. power consumption: 18 W (6 W if without 12 V load)

    • MedžiagaFront cover: metal, body: metal, bracket: metal
    • Dydis816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
    • Pakuotės dydis862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
    • SvorisApprox. 2.3 kg (5.1 lb.)
    • Svoris su įpakavimuApprox. 3.2 kg (7.1 lb.)
    • Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Pagrindinės funkcijosAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
    • Patvirtinimai
    • EMC

      CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);

      RCM (AS/NZS CISPR 32: 2015);

      IC (ICES-003: Issue 7)

    • RF

      CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

      ICASA: same as CE-RED;

      IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

      MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

    • Saugumas

      CB (IEC 62368-1:2014+A11)

      CE-LVD/UKCA (EN 62368-1:2014/A11:2017)

      LOA (IEC/EN 60950-1)

    • Aplinkosauga

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)

    • Apsauga

      Camera: IP66 (IEC 60529-2013)

      Wind resistance 12 level, up to 40 m/s wind speed resistance
