  •   Hikvision 6 prievadų komutatorius DS-3E1506P-EI/M (valdomas)

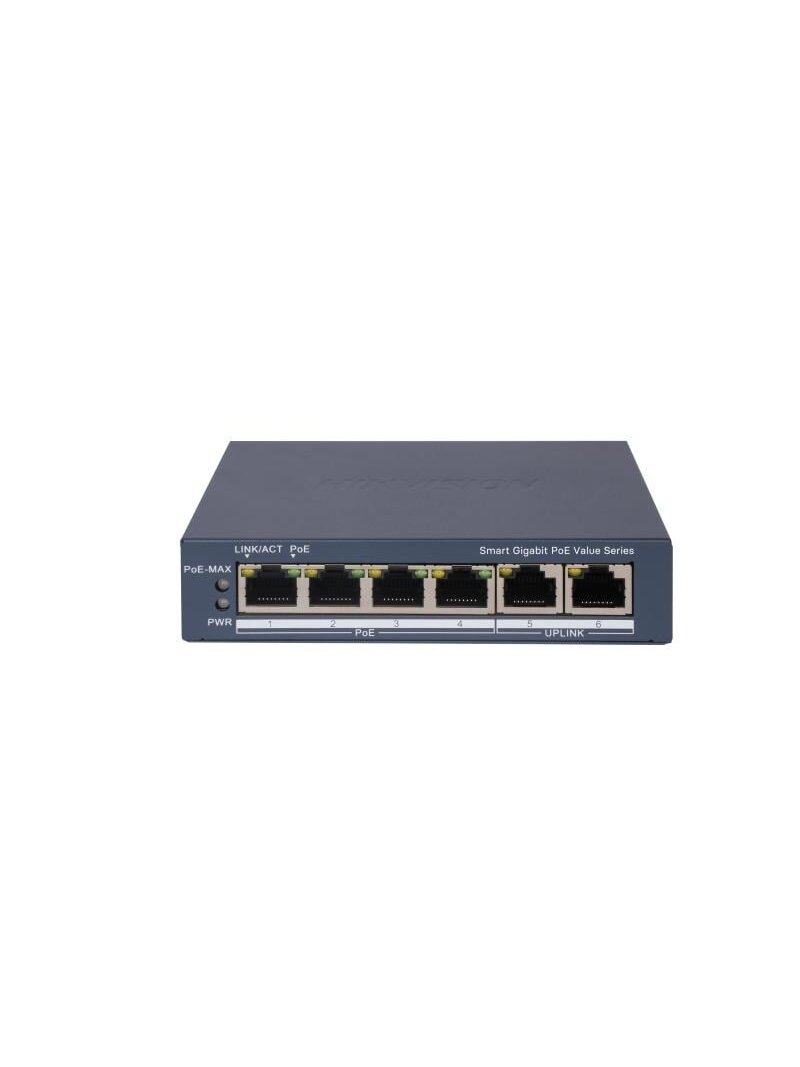

    Hikvision 6 prievadų komutatorius DS-3E1506P-EI/M (valdomas)

    Kodas: SWITCHDS3E1506PEIM
    Barkodas: 6942160450087
    Pasiteirauti apie prekę
    38.71 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 10 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Jungtys: 4 × Gigabit PoE, 2 × Gigabit RJ45
    • Bendra PoE galia: 45 W
    • Protokolas: 802.1Q VLAN, STP, RSTP
    • Funkcijos: PoE watchdog, kabelio gedimo aptikimas
    • PoE perdavimo atstumas: iki 300 m
    • Apsauga: 6 kV viršįtampio apsauga
  • Prekės aprašymas
    • Patvirtinimai
    • Cheminių komponentų sertifikavimasReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
    • SaugumasCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
    • Bendra informacija
    • Matmenys (P × A × G)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
    • Bendras svoris0.77 kg (1.7 lb)
    • Installation ModeDesk-Mounted,Wall-Mounted
    • Maks. energijos suvartojimas50 W
    • Grynasis svoris0.27 kg (0.6 lb)
    • Darbo drėgmė5% to 95% (no condensation)
    • Darbinė temperatūra0 °C to 40 °C (32 °F to 104 °F)
    • Energijos sunaudojimas miego režime1.8 W
    • Maitinimo šaltinis54VDC, 0.92A
    • Santykinė drėgmė5% to 95% (no condensation)
    • RėmasMetal material
    • Laikymo temperatūra-40 °C to 85 °C (-40 °F to 185 °F)
    • Apsauga nuo viršįtampių6 KV
    • Tinklo parametrai
    • Vidinė cache atmintis1 Mbits
    • MAC adresų lentelė2 K
    • Paketų perdavimo sparta10.42 Mpps
    • Prievadai4 × Gigabit PoE port,2 × Gigabit RJ45 port
    • Perjungimo našumas14 Gbps
    • PoE
    • Maks. PoE prievadų galia30 W
    • PoE prievadasPoE: Ports 1 to 4
    • PoE maitinimo biudžetas45 W
    • PoE galios jungtisEnd-span: 1/2(-), 3/6(+)
    • PoE standartasIEEE 802.3af,IEEE 802.3at
    • Programinės įrangos funkcijos
    • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
    • Ryšio agregavimasLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 2 aggregation groups.
    • Ilgo diapazono režimasPorts 1 to 4: up to 300 m.Long range performance may vary depend on camera model or cable condition.
    • Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
    • PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
    • Prievadų izoliacijaPorts 1 to 4: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
    • System MaintenanceSupport device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
    • VLANVLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
