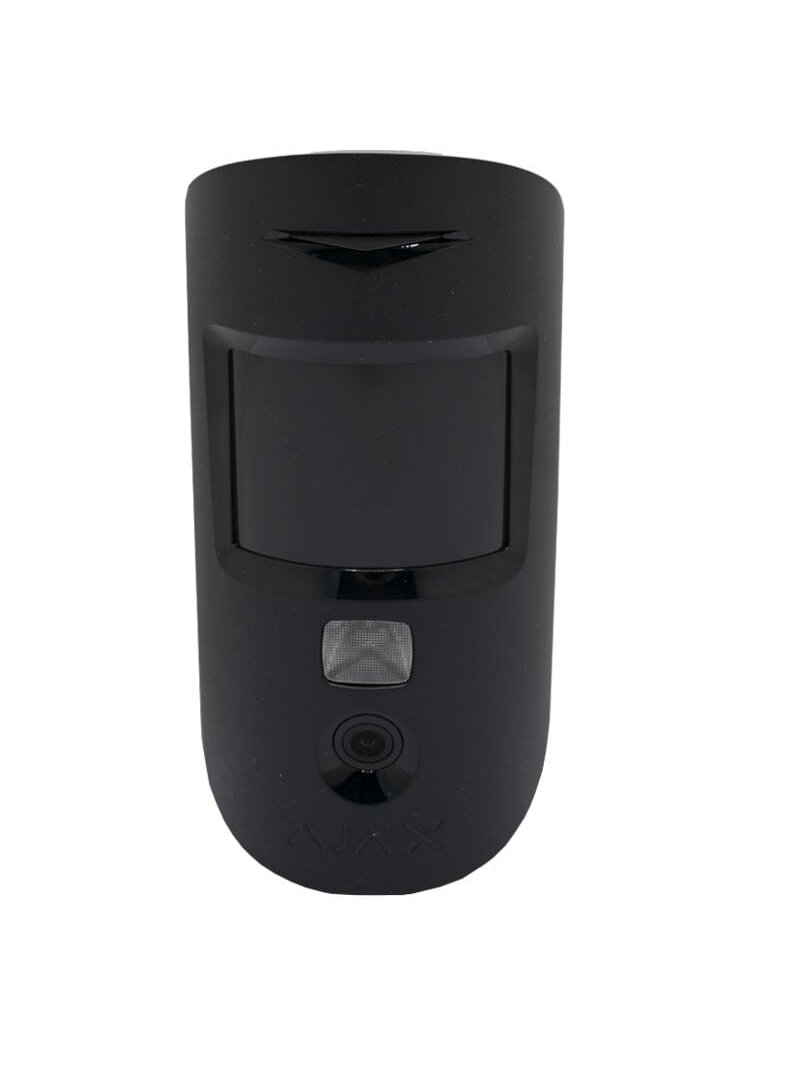

  •   Belaidis judesio jutiklis su kamera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (juodas, HDR)

    Belaidis judesio jutiklis su kamera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (juodas, HDR)

    Kodas: AJMOTIONCAMJEWELLERHDRBL
    Barkodas: 4823114068706
    Pasiteirauti apie prekę
    142.89 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 10 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • Tipas: Bevielis judesio jutiklis su kamera
    • Prekės ženklas: Ajax
    • Modelis: MotionCam Jeweller phOD
    • Spalva: Juoda
    • Aptikimo nuotolis: iki 12 m
    • Aptikimo kampas: 88,5°
    • Gyvūnų ignoravimas: iki 20 kg
  • Prekės aprašymas
    • Bendra informacija
    • BendravimasJeweller proprietary wireless communication technology for transmitting alarms and events; two-way communication, advanced anti-sabotage, block encryption with dynamic key, instant notifications, remote configuration via Ajax apps
    • Jeweller frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
    • Maksimali efektyvi spinduliuojama galia (ERP)Up to 20 mW with automatic power control to reduce consumption and interference
    • Radijo signalo moduliacijaGFSK
    • Radijo signalo veikimo nuotolisUp to 1,700 m between detector and control panel or range extender in open space
    • Šifruotas ryšysAll stored and transmitted data protected by block encryption with dynamic key
    • Dažnių šuoliaiUses frequency hopping to prevent interception and jamming
    • Wings ryšio technologijaProprietary wireless technology for photo verification transmission; two-way communication, block encryption with dynamic key, advanced anti-sabotage, data package reloading, photo delivery check
    • Wings frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
    • Wings radio signal rangeUp to 1,700 m between detector and control panel or range extender in open space
    • AptikimasSensitive element: 1 PIR sensor
    • Judėjimo aptikimo atstumasUp to 12 m when installed at 2.4 m height
    • Judėjimo aptikimo kampaiHorizontal — 88.5°
    • Judėjimo aptikimo greitisFrom 0.3 to 2.0 m/s; lens direction should be perpendicular to the expected intrusion path
    • Jautrumas3 levels adjustable by PRO or admin user in Ajax app
    • Atsparumas naminių gyvūnų sukeltiems signalamsUp to 20 kg and up to 50 cm height
    • Apsauga nuo klaidingų pavojaus signalųSmartDetect software algorithm with temperature compensation for −10 °C to +40 °C
    • Nuotraukų patikraPhoto by alarm, photo on demand (disabled by default), photo by scenario (disabled by default), photo by schedule (OS Malevich 2.19 or later), photo by arming/disarming
    • Nuotraukos raiška640 × 480 px, 320 × 240 px (default), 160 × 120 px; adjustable in Ajax app
    • HDR vaizdasImproves detail in bright and dark scenes; available from firmware 16.59.36.5 or later
    • IR apšvietimasFor night photography and low-light conditions
    • Nuotraukos serijoje1–5 images at 320 × 240 px or 160 × 120 px; 1–3 images at 640 × 480 px; adjustable in Ajax app
    • Nuotraukos pristatymo laikasUp to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px) when hub connected via Ethernet or 4G and signal strength 2–3 bars
    • Installation recommendationsIndoor use only; recommended installation height 2.4 m
    • Apsauga nuo sabotažoTampering alarm, protection against spoofing (device authentication), communication loss detection within 36 s (depends on settings)
    • Maitinimo šaltinis2 × CR123A batteries (pre-installed), type C
    • Apskaičiuotas baterijos veikimo laikasUp to 4 years with Photo on demand disabled; up to 3 years with Photo on demand enabled
    • Operating voltage range4.2–6.2 V⎓
    • Nominal operating voltage6 V⎓
    • Budėjimo srovės suvartojimas30 μA at nominal voltage
    • Maximum current consumption400 mA at nominal voltage
    • Baterijos talpa1,550 mAh; low battery voltage 4.71–5.00 V⎓; recovery voltage 5.06–5.36 V⎓; end-of-life voltage 3.8 V⎓; end-of-life capacity 150 mAh
    • Battery manufacturerHuiderui or Panasonic
    • KorpusasDimensions 135 × 70 × 60 mm; weight 170 g
    • Darbinė temperatūraFrom −10 °C to +40 °C
    • Darbinė drėgmėUp to 75%
    • Apsaugos klasėIP50
    • SpalvaBlack or White
    • Pilnas komplektasMotionCam (PhOD) Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide
