  •   6 prievadų, 4 PoE prievadų pramoninis komutatorius UTEPO UTP7304GE-POE 150W

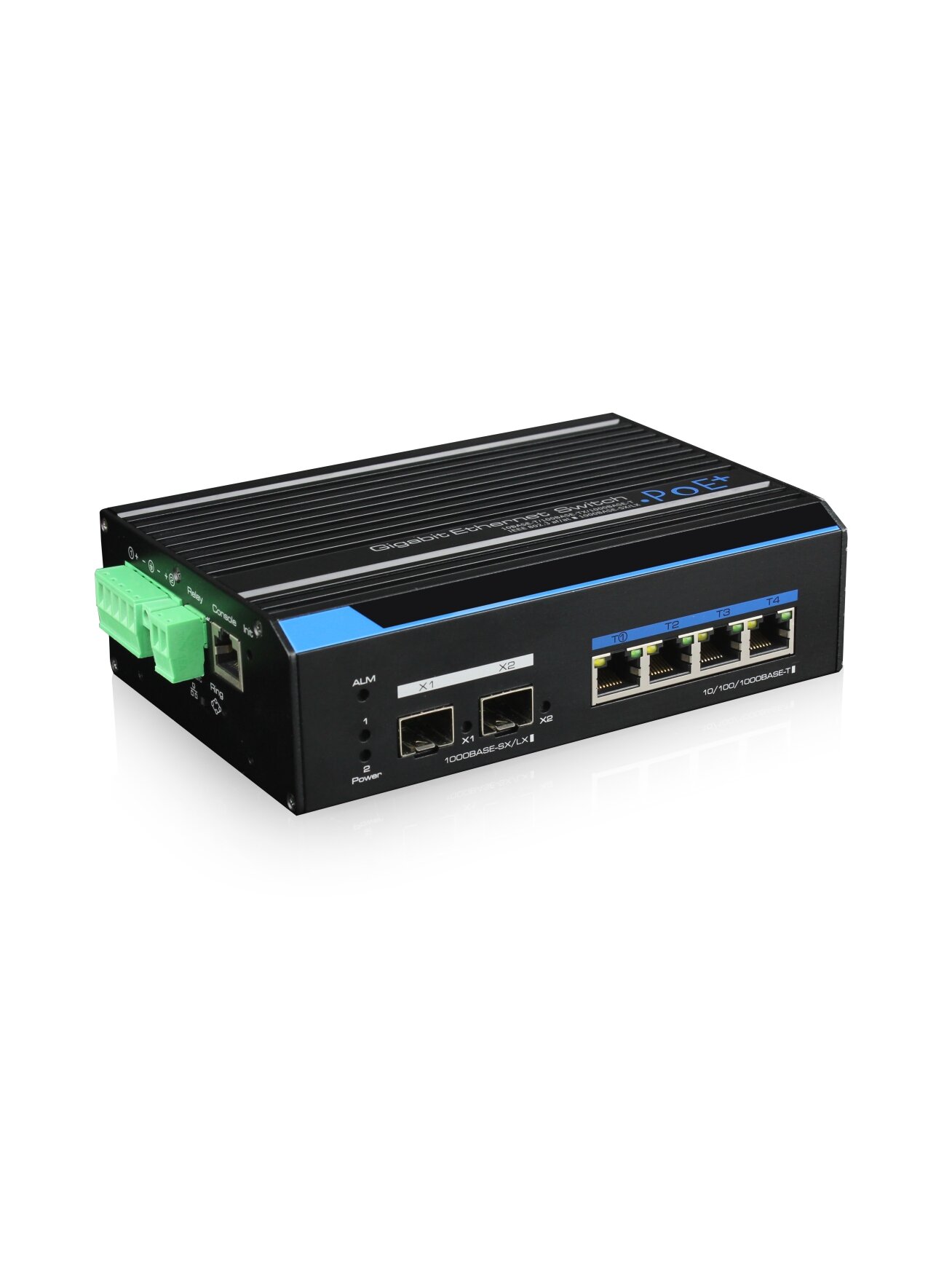

    6 prievadų, 4 PoE prievadų pramoninis komutatorius UTEPO UTP7304GE-POE 150W

    Kodas: SWITCHUTP7304GEPOE150
    Pasiteirauti apie prekę
    273.64 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 2 SFP 1Gb prievadai
    • 4 PoE Lan 1Gb prievadai
    • Perkėlimo pajėgumas 24Gbps
    • Palaiko IEEE802.3af/at
    • 150W
    • PoE parametrai: 1 prievadas 60W HPoE，3 prievadai 30W PoE
  • Prekės aprašymas

    Modelis

    UTP7304GE-POE

    Energijos įvestis

    5pin green terminal, 2 groups DC input (reduntant power), 1 grounding terminal. Input power range:DC48V~57V

    Energijos suvartojimas

    Self comsumtion< 20W

    Variniai prievadai

    4* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

    SFP prievadai

    2*1000 Base-X SFP(Mini-GBIC)

    Konsolės prievadai

    1*RJ45-R232 serial port(115200,8,N,1)

    Init mygtukas

    Short press:restart.

    >5s restore factory settings

    Vienas paspaudimas, greitas skambutis

    Default mode: No ring(can setup on web management).

    Ring mode: Fast ring with SFP X1 and X2

    Persiuntimo signalizacija

    Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

    Standartai ir protokolai

    IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

    Perkėlimo pajėgumas

    24Gbps

    Paketų perkėlimo greitis

    8.9Mpps

    Perkėlimo rėžimai

    Store and Forward

    Paketų buferis

    4Mbit

    MAC adresų lentelė

    8K MAC address table with auto learning function

    Jumbo kadras

    10K bytes

    PoE standartai

    T1 HPoE 60W max(also support 802.3af/at) ,T2～T4 802.3af/at 30W max

    PoE linijų pora

    T1:1/2(+),3/6(-).4/5(+),7/8(-)

    T2～T4:1/2(+),3/6(-) end-span

    EMI

    FCC Part 15,CISPR(EN55022) class A

    EMC

    Surge level-4 IEC61000-4-5

    ESD level-4 (8KV/10KV) IEC61000-4-2

    RS level-4 IEC61000-4-3

    EFT level-4 IEC61000-4-4

    CS level-3 IEC61000-4-6

    M/S level-5 IEC61000-4-8

    Veikimo temperatūra

    -40-75℃

    Laikymo temperatūra

    -40-85℃

    Atsparumas drėgmei

    5%-95%(Non-condensing)

    Matmenys（L×W×H）

    159mm×110mm×46.5mm

    Svoris

    1.5kg

    Instaliacija

    On desk.Din-rail.Wall hung

    MTBF

    330000 Hour

    Ingress apsauga

    IP40

    Certifikatai

    CE, FCC, ROHS

    Programinės įrangos parametrai

    Prievadų valdymas

    Support Port Enable/Disable.

    Support Port Rate Settings.

    Support Port Full-duplex Mode.

    Support IEEE802.3x Flow Control.

    Support Port Name Change.

    VLAN

    Support 4K VLAN

    Support 802.1Q Protocol-Based VLAN.

    Support Port-Based VLAN.

    QoS

    Support QoS.

    Support 8-Level Priority management for switching.

    Support WRR.

    Support 820.1P and DSCP Priority.

    Peržiurų valdymas

    Support SNMP V1/V2/V3 Protocol.

    Support IGMP Snooping.

    POE valdymas

    Support Total Power Consumption Control.

    Support PoE ON/OFF.

    Support Single Port 60W max. Power Change and Port Output Priority.

    Alarm signalo išvestis

    Support relay alarm for power off, ports network link-off , ports PoE off

    Apsauga

    Support IP, MAC, Port, VLAN Combination and Binding.

    Support MAC address auto-learning, aging& filter.

    Support Port Isolation, Port Speed-Limited.

    Support RSTP.

    Support Fast-Ring.

    Support 5 groups of 8-Port trunk.

    Support RADIUS Authentication& 802.1X Authentication.

    Sistemos valdymas

    Support WEB Management, CLR Settings and telnet Settings.

    Support CLR Settings.

    Support FTP/TFTP/HTTP Web Upgrading.

    Support Flow Calculate.

    Support MAC address Form Search.

    Support IP Address, DNS Server Change

    Support Username & Password Change.

    Support History Record, Journal management.

    Support System settings Backup.
