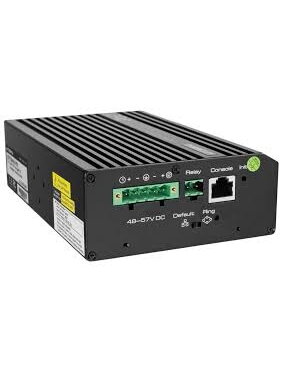

4 prievadų pramoninis komutatorius UTEPO UTP7304GE

Modelis

UTP7304GE

Varinės jungtys

4* 10/100/1000Base-T RJ45(Auto-MDI/MDI-X)

SFP jungtys

2*1000 Base-X SFP(Mini-GBIC)

Konsolės jungtis

1*RJ45-R232 serial port(115200,8,N,1)

Pradžios mygtukas

Short press:restart;

>5s restore factory settings

Aliarmo atidėjimas

Support relay alarm for power off, ports network link-off （Set by Web Software）

Tinklo standartas

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Perjungimo pajėgumas

24Gbps / non-blocking

Perjungimo pralaidumas

17.9Mpps

Perjungimo architektūra

Store and Forward

Bendrintų duomenų kiekis

4Mbit

Adresų lentelė

8K MAC address table with auto learning function

"Jumbo" kadras

10K bytes

Apsauga nuo žaibo

6KV Execute：IEC61000-4-5

ESD

8KV Contact discharge

15KV Air discharge

Execute：IEC61000-4-2

Maitinimas

DC12V～57V

Galios eikvojimas

Self comsupmtion< 30W

Darbinė temperatūra

-40-75℃

Saugyklos temperatūra

-40-85℃

Drėgmė

5%-95%(Non-condensing)

Matmenys（I×P×A）

159mm×110mm×46.5mm

Svoris

1.5kg

Montavimas

On desk;Din-rail;Wall hung

MTBF

330000 Hour

Sertifikatai

CE, FCC, ROHS

Programinė įranga

Jungčių valdymas

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 820.1P and DSCP Priority;

Multi-transliacijų valdymas

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

Pavojaus relės signalo išvestis

Support relay alarm for power off, ports network link-off , ports PoE off

Saugumas

Support IP, MAC, Port, VLAN Combination and Binding;

Support MAC address auto-learning, aging& filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication& 802.1X Authentication;

Sistemos priežiūra ir palaikymas

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username& Password Change;

Support History Record, Journal management;

Support System settings Backup;
