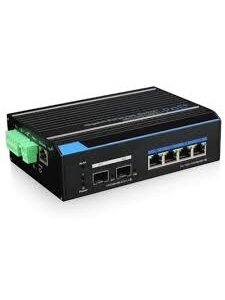

4 prievadų, 4 PoE pramoninis komutatorius UTEPO UTP7304GE-POE

Prekė

UTP7304GE-POE

Galios įvestis

5pin green terminal，2 groups DC input（reduntant power），1 grounding terminal；Input power range:DC48V~57V

Galios sklaida

Self comsupmtion< 30W

Varinės jungtys

4* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP jungtys

2*1000 Base-X SFP(Mini-GBIC)

Konsolės jungtys

1*RJ45-R232 serial port(115200,8,N,1)

Startavimo mygtukas

Short press:restart;

>5s restore factory settings

"Fast-Ring"

Default mode: No ring(can setup on web management)；

Ring mode: Fast ring with SFP X1 and X2

Aliarmo signalas

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Tinklo standartas

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X

Perjungimo pajėgumas

24Gbps

Perjungimo pralaidumas

17.9Mpps

Store and Forward

4Mbit

Adresų lentelė

8K MAC address table with auto learning function

"Jumbo" kadras

10K bytes

PoE standartas

T1 HPoE 60W max(also support 802.3af/at) ,T2～T4 802.3af/at 30W max

Kontaktų priskyrimas

T1:1/2(+),3/6(-);4/5(+),7/8(-)

T2～T4:1/2(+),3/6(-) end-span

EMI

FCC Part 15,CISPR(EN55022) class A

EMC

Surge level-4 IEC61000-4-5

ESD level-4 (8KV/10KV) IEC61000-4-2

RS level-4 IEC61000-4-3

EFT level-4 IEC61000-4-4

CS level-3 IEC61000-4-6

M/S level-5 IEC61000-4-8

Darbo temperatūra

-40-75℃

Saugyklos temperatūra

-40-85℃

Drėgmė

5%-95%(Non-condensing)

Matmenys（I×P×A）

159mm×110mm×46.5mm

Svoris

1.5kg

Montavimas

On desk;Din-rail;Wall hung

MTBF

330000 Hour

Apsaugos lygis

IP40

Sertifikatai

CE, FCC, ROHS

Programinės įrangos parametrai

Jungčių valdymas

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 820.1P and DSCP Priority;

Multicast valymas

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

POE valdymas

Support Total Power Consumption Control;

Support PoE ON/OFF;

Support Single Port 60W max. Power Change and Port Output Priority;

Relės išvestis aliarmo atveju

Support relay alarm for power off, ports network link-off , ports PoE off

Saugumo charakteristikos

Support IP, MAC, Port, VLAN Combination and Binding;

Support MAC address auto-learning, aging& filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication& 802.1X Authentication;

System Management& Maintenance

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username& Password Change;

Support History Record, Journal management;

Support System settings Backup;
