  •   24 prievadų, 24 PoE komutatorius UTEPO UTP3-GSW2404-TSP200

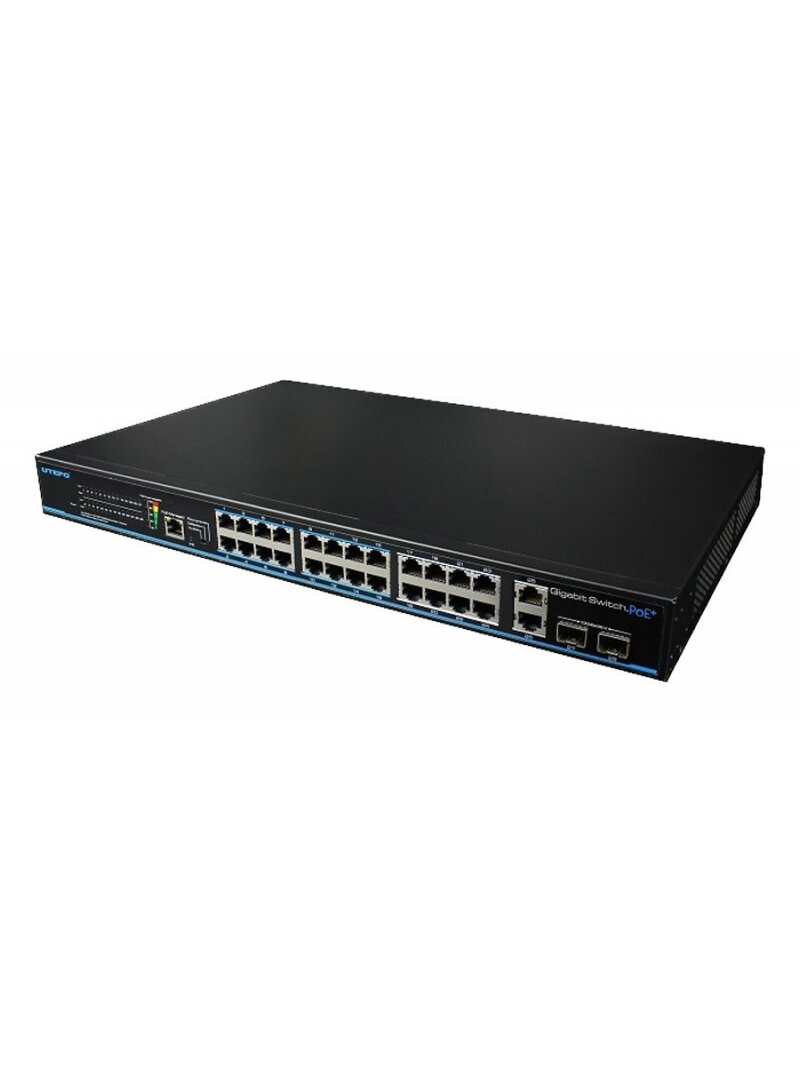

    24 prievadų, 24 PoE komutatorius UTEPO UTP3-GSW2404-TSP200

    Kodas: SWIUTEPOUTP3GSW2404TSP200
    Pasiteirauti apie prekę
    280.53 €
    Netinka kaina? Siūlyk savo!
    Mažas prekės kiekis sandėlyje.
    Informuoti, kai prekę turėsime
    Likutis: 0 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 24 portų komutatorius (24 PoE 1 Gbps)
    • 2-Uplink 1Gbps
    • 2-SFP Gb Combo port
    • 1-PoE webmanagement
    • 200W
  • Prekės aprašymas

    Item

    Description

    Product Type

    Product Type

    2000W

    Port

    Description

    Downlink Ethernet Ports

    24*10/100/1000BASE-T(16 PoE+)

    Uplink Ethernet Ports

    2*10 100 1000Base-T+2*1000Base X(SFP)

    Power Input

    1×AC Female Terminal

    Grounding Terminal

    1×Grounding Terminal

    PoE&Power

    Power Input

    Mains on load,100～240VAC 50/60Hz

    PoE Power Supply

    Type&Standard

    End-span(1/2，3/6),IEEE802.3 af/at

    PoE Max. Power Output

    180W

    Single Port Power Output&

    Voltage

    Single Port PoE Power Output≤30W, Voltage 54VDC

    PoE Web

    Management

    PoE Management

    Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output

    Reset Button

    PoE Web Reset

    Long-press 3s, all Link LED solid on about 10s, switch reset to factory default; short-press to restart.

    One-key Mode

    VLAN

    1. Downlink ports only communicate with uplink ports;

    2. Restrain network storm under 2Mbps

    Default

    All ports can communicate with each othe

    Flow control

    Switch flow control function is turned off, this mode is suitable for video surveillance transmission

    Network

    Parameters

    Network Standard

    IEEE 802.3,IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z

    Transmission Distance

    100m(Max.)

    Exchange Capacity

    52Gbps

    Packet Transfer Rate

    38Mpps

    MAC Address

    8K

    Packet Data Cache

    4Mb

    Indicators

    Status

    Power Input

    1x Red LED

    Downlink Ethernet Ports

    Link:24x Green LED

    PoE 24x Yellow LED

    Uplink Ethernet Port Link

    4x Green LED

    PoE Power Output Percent

    5x LED(Including 3x Green, 1x Yellow, 1x Red), separately indicate

    30%、60% ～100%

    Protection

    Level

    ESD

    6KV 8KV, Per:IEC61000 4 2

    Surge Protection

    6KV, Per:IEC61000-4-5

    Operation

    Environment

    Operation Temperature

    0 ℃～45 ℃

    Storage Temperature

    -40 ℃～85 ℃

    Humidity(Non-condensing)

    0～95%

    Mechanics

    Dimensions(LxWxH)

    442 *285 *44.5 mm mm mm

    Material

    Iron

    Color

    Black
