  •   18 prievadų, 16 PoE prievadų komutatorius Hik-vision DS-3E1518P-EI(V2)

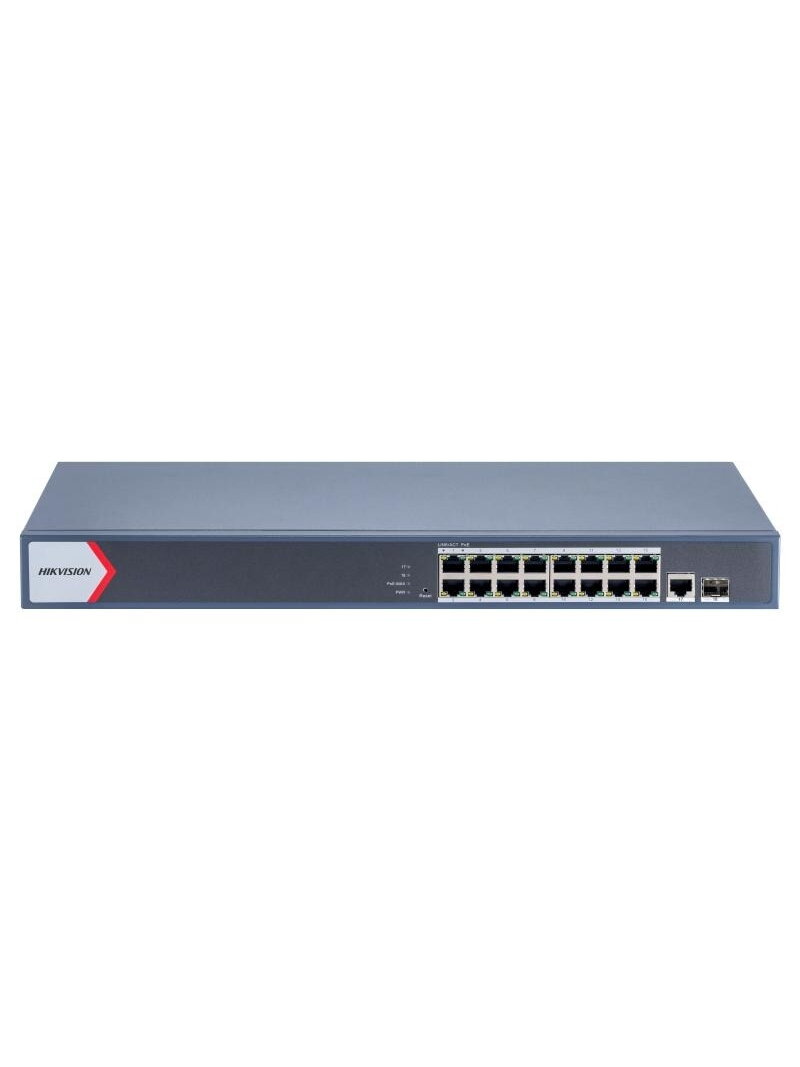

    18 prievadų, 16 PoE prievadų komutatorius Hik-vision DS-3E1518P-EI(V2)

    Kodas: SWITCHDS3E1518PEIV2
    Barkodas: 6942160430911
    Pasiteirauti apie prekę
    237.11 €
    Netinka kaina? Siūlyk savo!
    Šią prekę turime sandėlyje.
    Likutis: 5 vnt.
    Lizingo skaičiuoklės
    • esto3
    • esto
    • 18 prievadų
    • 16 × 1000 Mbps PoE LAN prievadai, 1 × 1000 Mbps SFP prievadas, ir 1 × 1000 Mbps uplink LAN prievadas
    • PoE prievadai: 16
    • PoE galia: 230 W
    • Bendras pralaidumas: 56 Gbps
    • Perduodamų paketų sparta: 41.66 Mpps
    • MAC adresų lentelė: 8K
    • Standartai: IEEE 802.3u, IEEE 802.3x
    • Darbinė įtampa: 110-250 VAC
    • Srovė: 2.5 A
    • Montavimas: RACK
    • Darbinės temperatūros diapazonas: -10°C ~ 55°C
  • Prekės aprašymas
    • Pagrindinis
    • RėmasMetal material
    • Svoris be įpakavimo2.85 kg (6.28 lb)
    • Svoris su įpakavimo3.05 kg (6.72 lb)
    • Dydis440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
    • Darbo sąlygos (temperatūra)0 °C to 45 °C (32 °F to 113 °F)
    • Sandėliavimo sąlygos temperatūra-40 °C to 85 °C (-40 °F to 185 °F)
    • Darbo sąlygos (drėgmė)5% to 95% (no condensation)
    • Santykinė drėgmė5% to 95% (no condensation)
    • Maitinimas100~240 V AC, 50/60 Hz, Max. 4 A
    • Installation ModeRack (equipped with mounting ears)
    • Maks. energijos sunaudojimas250 W
    • Energijos sunaudojimas miego režime20 W
    • Surge Protection6 KV
    • Tinklo parametrai
    • Prievadai16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
    • MAC adresų lentelė8 K
    • Perjungimo talpa56 Gbps
    • Paketų persiuntimo greitis41.66 Mpps
    • Vidinė cache atmintis4.1 Mbits
    • PoE
    • PoE standartasIEEE 802.3af,IEEE 802.3at
    • PoE galios jungtis8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE prievadasPoE: Ports 1 to 16
    • Maks. PoE prievadų galia30 W
    • PoE disponuojama galia230 W
    • Programinės įrangos funkcijos
    • Ilgo diapazono režimasPorts 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
    • Prievado izoliacija

      Ports 1 to 16: port isolation mode to improve network security.

      Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

    • PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
    • Nuorodų agregavimas

      Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

      Support static link aggregation.

      Support 8 aggregation group(s).

    • Loop Prevention

      Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

      Support 802.1D STP.

      Suppport 802.1w RSTP.

    • VLAN

      VLAN is used for network scale planning and network health improvement.

      Support 802.1Q.

      Configurable VLAN ID from 1-4094.

      Support Trunk, Access port mode.

      Support Max. 32 VLAN.

    • HPP

      Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

      1. Display the port rate.

      2. Display the port bandwidth utilization rate.

      3. Display the PoE power usage.

      4. Display topology information.

      5. Display the alarm status.

      6. Restart ports and devices.

      7. Enable port long-rage mode.

      8. Remotely upgrade the device.

    • System Maintenance

      Support device management via web.

      Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

      Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

      Support remote management via Hik-Partner Pro.

      Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

      Support 802.1ab LLDP for peer device discovery.

      Support port mirroring for fault locating.

    • Patvirtinimai
    • EMCCE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017)
    • Saugumas

      CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);

      CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

    • Cheminis tyrimasCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
